POWER CONSUMPTION

• Typical: 5 W
• Voltage, DC (Typical): PoE (37V-57V)
• Voltage DC Range: 37 V-57 V per 802.3af spec
• Power Connector: (1) RJ-45 Ethernet

POWER SUPPLY
External, Required. Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included

ENVIRONMENTAL

• Temperature (Operating): 32° F to 122° F (0° C to 50° C)
• Temperature (Storage): 14° F to 140° F (-10° C to 60°C)
• Humidity (Operating): 5% to 85% RH

ETHERNET
(1) 10/100; Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information.

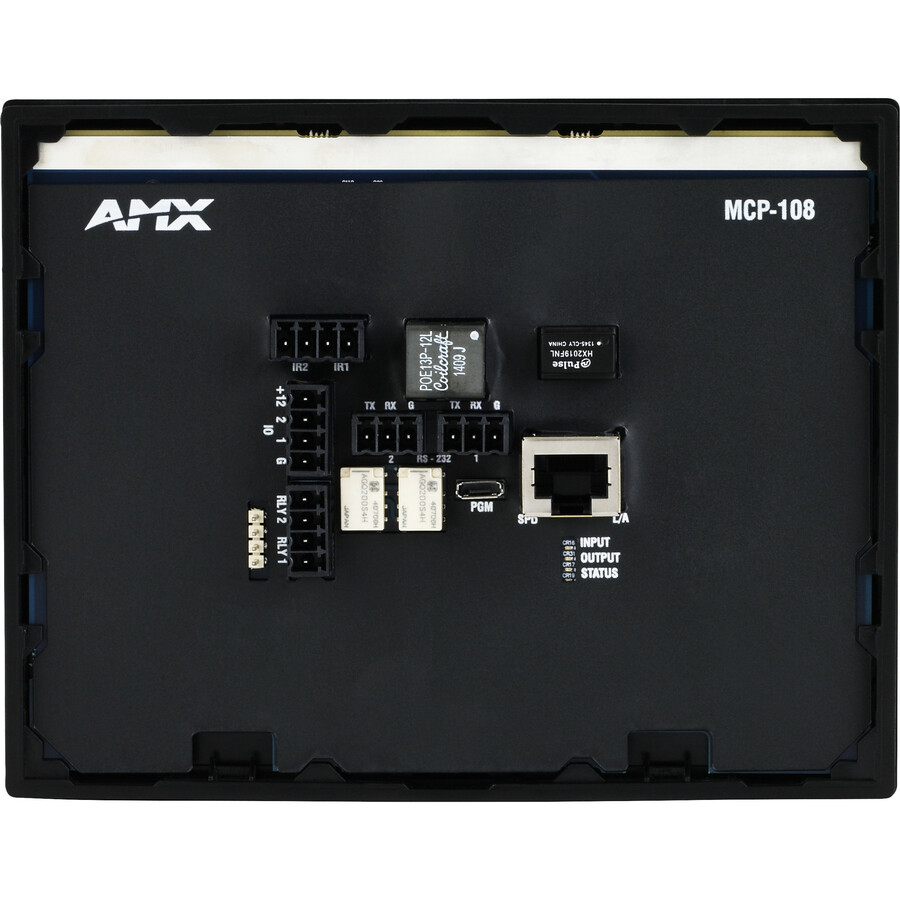

CONTROL PORTS & INDICATORS

• Program Port: (1) USB Mini-B, USB
• ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode

MEMORY

• Flash: 4 GB
• Memory Card: 4 GB SD
• DDRAM: 256 MB

REGULATORY COMPLIANCE

• FCC CFR Title 47 Part 15
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
• IEC 60950-1
• UL 60950-1
• C-Tick CISPR 22
• IC CISPR 22
• VCCI CISPR 22
• RoHS
• WEEE
