Atlas- ALA15TAW

EN54-24 Certified 15 Speaker Full Range Line Array Speaker System -

Manufacturer: Atlas
Category: Speakers
SKU: ALA15TAW
Availability: Call
MSRP: $910.99
PRODUCT HIGHLIGHTS

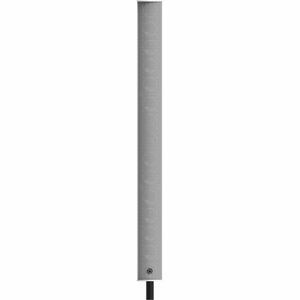

The EN54-24 certified ALA15TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15TAW’s transducer configuration combines fifteen tight packed 3" (76mm)full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.

  • Use In Fixed Install or Portable Applications
  • 40° Vertical Coverage
  • 135° Horizontal Coverage
  • 70.7V, 100V or 6Ω Operation
  • Fifteen (15) Proprietary 3" (76mm) Full Range Transducers
  • Four (4) High Frequency Tweeters
  • Barrier Strip and NL-4 Terminals
  • Lightweight Aluminum Housing
  • IP33C Weather Rating
  • EN54-24 Certified
  • Available In Black or White Finish
  • Wall Mount Bracket Included
SPECIFICATIONS
General Information
ManufacturerAtlasIED
Manufacturer Part NumberALA15TAW
Manufacturer Website Addresshttp://www.atlassound.com
Brand NameAtlasIED
Product LineLine Array
Product ModelALA15TAW
Product NameALA15TAW Passive Column Line Array Loudspeaker
Product TypeSpeaker
Technical Information
RMS Output Power600 W
Woofer Driver Size2.99"
Tweeter Driver Size0.87"
Full Range Driver Size2.99"
Minimum Frequency Response160 Hz
Maximum Frequency Response160 kHz
Impedance6 Ohm
Sensitivity96 dB
FeaturesLightweight
Ingress Protection (IP) RatingIP33C
Physical Characteristics
Product ColorWhite
Box MaterialAluminum
Form FactorPole Mount
Wall Mountable
Miscellaneous
Package Contents
  • ALA15TAW Passive Column Line Array Loudspeaker
  • Wall Mount Bracket
Application/UsageMuseum
House of Worship
Transportation
Retail Space
Conference Room
Multipurpose
Stadium
Concourse
Convention Center
Gymnasium
Lecture Hall
Theatre
Challenging Acoustic Space
Architecturally Sensitive Space
Warranty
Limited Warranty5 Year
