The speaker used in the SD72 is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series speakers. Similarity in sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72.

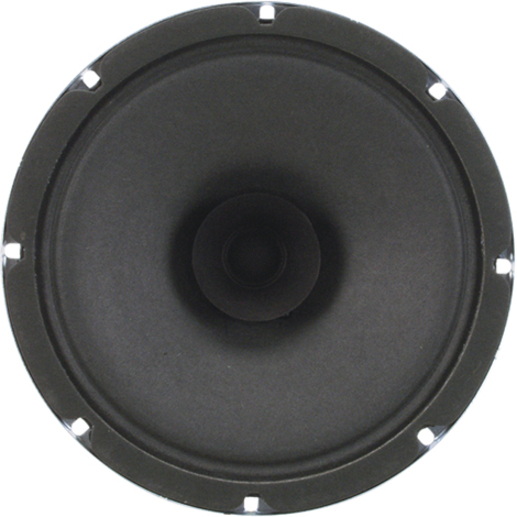

Model SD72 is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
Model SD72 operates within a frequency response range of 45Hz to 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.
- RMS Output Power: 25 W
- Minimum Frequency Response: 55 Hz
- Maximum Frequency Response: 19 kHz
- Impedance: 8 Ohm
- Sensitivity: 97 dB
- Shape: Round
- Product Color: Black
- Product Material: Anodized Aluminum
- Product Material: Copper
- Product Material: Paper
- Product Material: Ceramic
- Form Factor: In-ceiling
- Depth: 2.87"
- Limited Warranty: 5 Year
