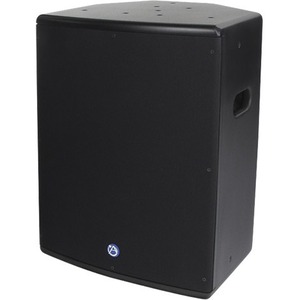

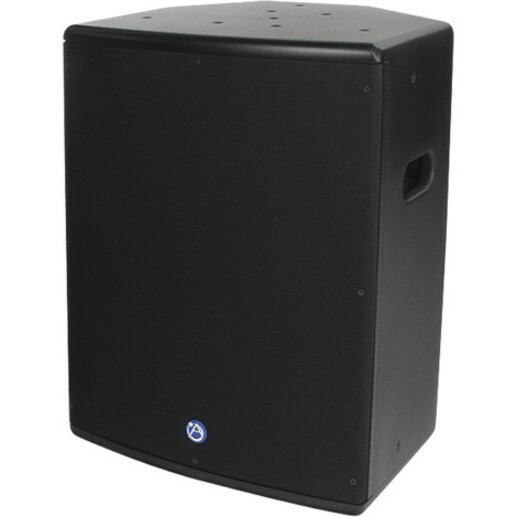

Atlas- SM12CXT-B

12" 2-Way Compression Driver Coaxial Surface Mount Speaker

Manufacturer: Atlas
Category: Speakers
SKU: SM12CXT-B
Availability: Call
MSRP: $913.99
PRODUCT HIGHLIGHTS
SM Series speakers offer quality sound reproduction and contemporary styling. The SM12CXT-B features the 12CXT60—a 250 watt speaker that combines a 12" diameter, low frequency transducer and a 1" exit, compression driver. The speaker has a curvilinear, treated-paper cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers.

The SM12CXT-B features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation. A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM12CXT-B a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.
  • Crossover Type: 2-way
  • RMS Output Power: 250 W
  • Woofer Driver Size: 12"
  • Woofer Driver Material: Paper
  • Tweeter Driver Size: 1"
  • Tweeter Driver Material: Titanium
  • Minimum Frequency Response: 55 Hz
  • Maximum Frequency Response: 15 kHz
  • Sensitivity: 99 dB
  • Impedance: 8 Ohm
  • Product Color: Black
  • Form Factor: Wall Mountable
  • Height: 19"
  • Width: 14.5"
  • Depth: 14.06"
  • Weight (Approximate): 39 lb
SPECIFICATIONS
General Information
ManufacturerAtlasIED
Manufacturer Part NumberSM12CXT-B
Manufacturer Website Addresshttp://www.atlassound.com
Brand NameAtlasIED
Product SeriesSM
Product ModelSM12CXT-B
Product Name12" Coaxial Speaker System 70.7V/100V/8Ω
Product TypeSpeaker
Technical Information
Crossover Type2-way
RMS Output Power250 W
Woofer Driver Size12"
Woofer Driver MaterialPaper
Tweeter Driver Size1"
Tweeter Driver MaterialTitanium
Minimum Frequency Response55 Hz
Maximum Frequency Response15 kHz
Impedance8 Ohm
Sound Pressure Level123 dB
Sensitivity99 dB
Physical Characteristics
Product ColorBlack
Product MaterialWood
Metal
Tweeter MaterialTitanium
Woofer MaterialPaper
Form FactorWall Mountable
Miscellaneous
Package Contents
  • 12" Coaxial Speaker System 70.7V/100V/8Ω
  • Multiple (12) 1/4"-20 Inserts for Overheard Suspension
