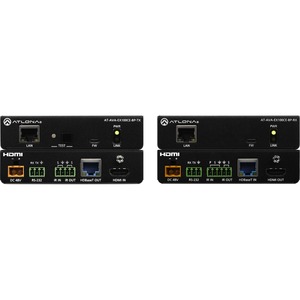

Atlona- AT-AVA-EX100CE-BP-KIT

Avance 4K/UHD extended distance HDMI Transmitter and Receiver Kit w/RS

Manufacturer: Atlona
Category: Twisted Pair Extension
SKU: AT-AVA-EX100CE-BP-KIT
Availability: In Stock
MSRP: Call for Price
PRODUCT HIGHLIGHTS

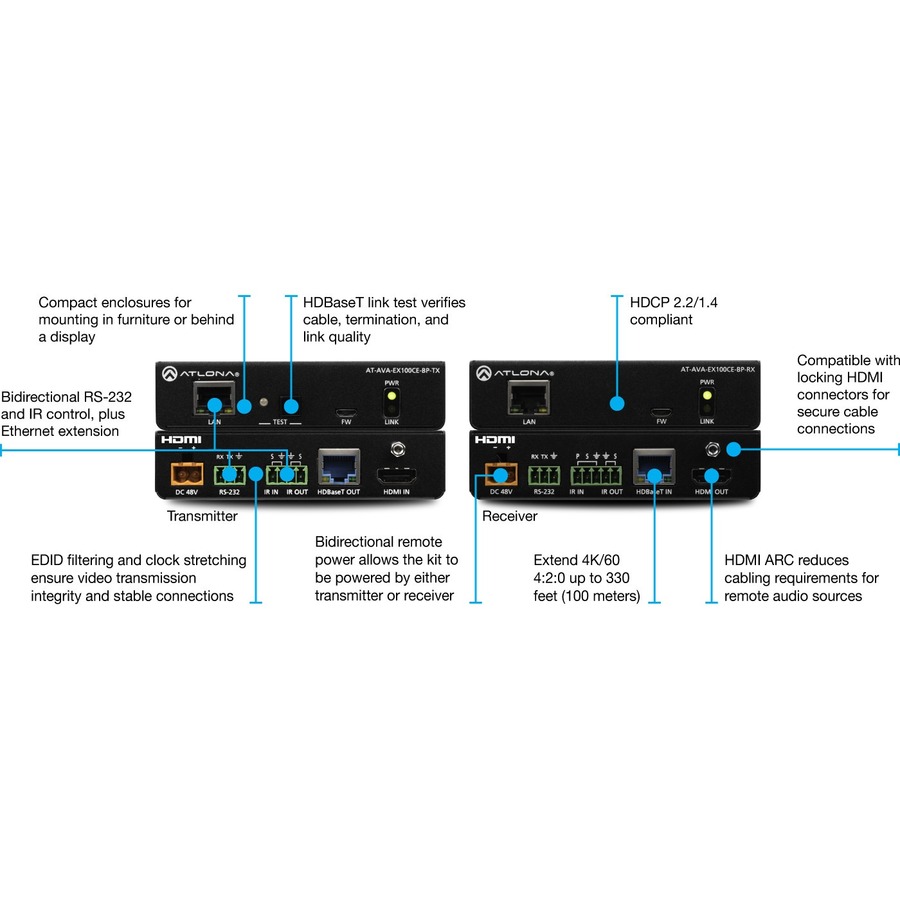

Avance™ 4K/UHD HDMI Extender Kit with Ethernet, Control, and Bidirectional Remote Power

Extend AV signals further than HDMI cables

Extends 4K/UHD 60 Hz 4:2:0 up to 100 meters (330 feet) with Category 6/6A

Faster and more reliable installs

EDID filtering, clock stretching, and HDBaseT link test ensure video transmission integrity and stable connections, as well as verification of cable termination, and link quality

Flexible powering

Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT

  • Supports resolutions up to 4K/UHD 60 Hz 4:2:0
  • Extends bidirectional Ethernet data as well as RS-232 and IR control signals
  • Bidirectional remote power, kit may be powered by either transmitter or receiver
  • HDMI ARC for audio return from the display
  • EDID filtering prevents extension of unsupported resolutions
  • HDBaseT link test verifies cable, termination, and link quality
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • HDMI Out: Yes
  • USB: Yes
  • Number of Network (RJ-45) Ports: 2
  • Number of USB Ports: 2
  • Number of HDMI Inputs: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 7
  • Transmitter Height: 1.02"
  • Transmitter Width: 4.29"
  • Transmitter Depth: 5.20"
SPECIFICATIONS
General Information
ManufacturerAtlona Technologies
Manufacturer Part NumberAT-AVA-EX100CE-BP-KIT
Manufacturer Website Addresshttp://www.atlona.com
Brand NameAtlona
Product NameVideo Extender Transmitter/Receiver
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported2
Number of Output Devices Supported2
Maximum Operating Distance330 ft
Video
Graphics Modes4K UHD
Maximum Video Resolution4096 x 2160
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
USBYes
Number of Network (RJ-45) Ports2
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 7
Power Description
Frequency50 Hz
60 Hz
Physical Characteristics
Transmitter Height1.02"
Transmitter Width4.29"
Transmitter Depth5.20"
Receiver Height1.02"
Receiver Width4.29"
Receiver Depth5.20"
Transmitter Weight (Approximate)12.70 oz
Receiver Weight (Approximate)12.70 oz
Miscellaneous
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
Environmentally FriendlyYes
Environmental CertificationRoHS
