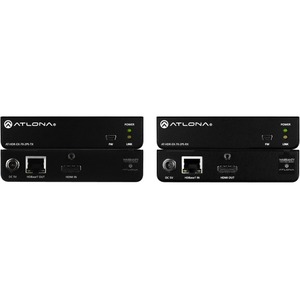

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit
is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates
up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and
up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression
with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-2PS delivers a
cost-effective solution for HDMI extension, with locally powered transmitter and receiver endpoints as well as surface
mounting hardware for discreet installation.
The HDR-EX-70-2PS is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR
sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported
in the HDMI 2.0b specification, plus the ability to pa
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- HDBaseT™ extender kit for HDMI® up to 230 feet (70 meters)
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
- Graphics Modes: 4K
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- HDMI Out: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 2
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Transmitter Height: 0.98"
- Transmitter Width: 4.29"
- Transmitter Depth: 2.99"
