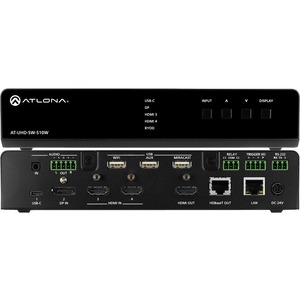

The 4K/UHD 5-Input Universal Switcher with Wireless Presentation Link from Atlona is a 5x1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, as well as wireless connectivity for mobile devices. This HDCP 2.2 compliant switcher features an HDMI output and a mirrored HDBaseT output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections.
- Two HDMI, one DisplayPort, one USB-C input, and a dedicated wireless AV input
- True BYOD capability
- Provides Wi-Fi connectivity for an iOS, Android, Mac, Chromebook, or Windows-based device
- Includes dual IEEE 802.11ac Wi-Fi access points - secondary access point required for Miracast (Wi-Fi Direct)
- Integrated access point can be segregated from the facility network for security reasons
- Allows screen mirroring without the need for a separate app
- Supports wireless video up to 1920 x 1080 at 30 Hz (4:2:0) (up to 1920 x 1080 at 60 Hz with Miracast)
- Supports Miracast over Infrastructure for use of facility Wi-Fi or Ethernet network
- Prevents unauthorized access (room hijacking) or content sharing with user-defined or randomly generated security authentication codes
- Ensures presentation content is not received by SW510W units in adjacent rooms
- Automatically changes display power state, and switches between inputs based on device connection or disconnection from the switcher
- Works for both wired and wireless source devices
- Enables effortless, automated system operation without the need for an external control system
- USB-C charging for laptops, tablets, and smartphones
