Audix- AP61OM5

WIRELS,R61,HH, W/OM5 CAP 522-586MHz

Manufacturer: Audix
Category: Wireless Microphones
SKU: AP61OM5
Availability: Call
MSRP: $1,029.00
PRODUCT HIGHLIGHTS

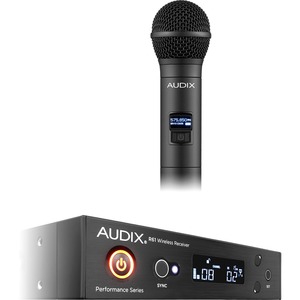

A professional true diversity handheld wireless system featuring the Audix OM5. Since the mid-90s, the OM5 has become one of the world's most respected handheld dynamic mics. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback, and the ability to handle SPLs over 144 dB without distortion. A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include a rackmount kit for mounting two systems in one rack space, active directional antennas, and an antenna distribution system for up to four systems (4 channels).
  • Minimum Operating Frequency: 522 MHz
  • Maximum Operating Frequency: 586 MHz
  • Minimum Frequency Response: 45 Hz
  • Maximum Frequency Response: 18 kHz
  • Signal to Noise Ratio (SNR A-Weighted): 112 dB(A)
  • Operating Range: 450 ft
  • XLR: Yes
  • Battery Run Time: 14 Hour
SPECIFICATIONS
General Information
ManufacturerAudix Microphones
Manufacturer Part NumberAP61OM5
Manufacturer Website Addresshttp://www.audixusa.com
Brand NameAudix
Product LinePerformance
Product NamePerformance Wireless Microphone System
Product TypeWireless Microphone System
Technical Information
Minimum Operating Frequency522 MHz
Maximum Operating Frequency586 MHz
Minimum Frequency Response45 Hz
Maximum Frequency Response18 kHz
Signal to Noise Ratio (SNR A-Weighted)112 dB(A)
Operating Range450 ft
Microphone TechnologyDynamic
Interfaces/Ports
XLRYes
Battery Information
Battery Size SupportedAA
Battery Run Time14 Hour
Miscellaneous
Package Contents
  • 1 x R61 64 MHz True Diversity Receiver
  • 1 x H60 Handheld Transmitter with OM5 Capsule Module
  • 2 x Antennas
  • 1 x Audio Cable
  • 1 x Clip
  • 1 x Pouch
  • 2 x AA Batteries
  • 1 x Carrying Case
  • 1 x Power Supply
  • 1 x User Guide
  • 1 x Rackmount Hardware
  • 2 x BNC Cables
Additional Information

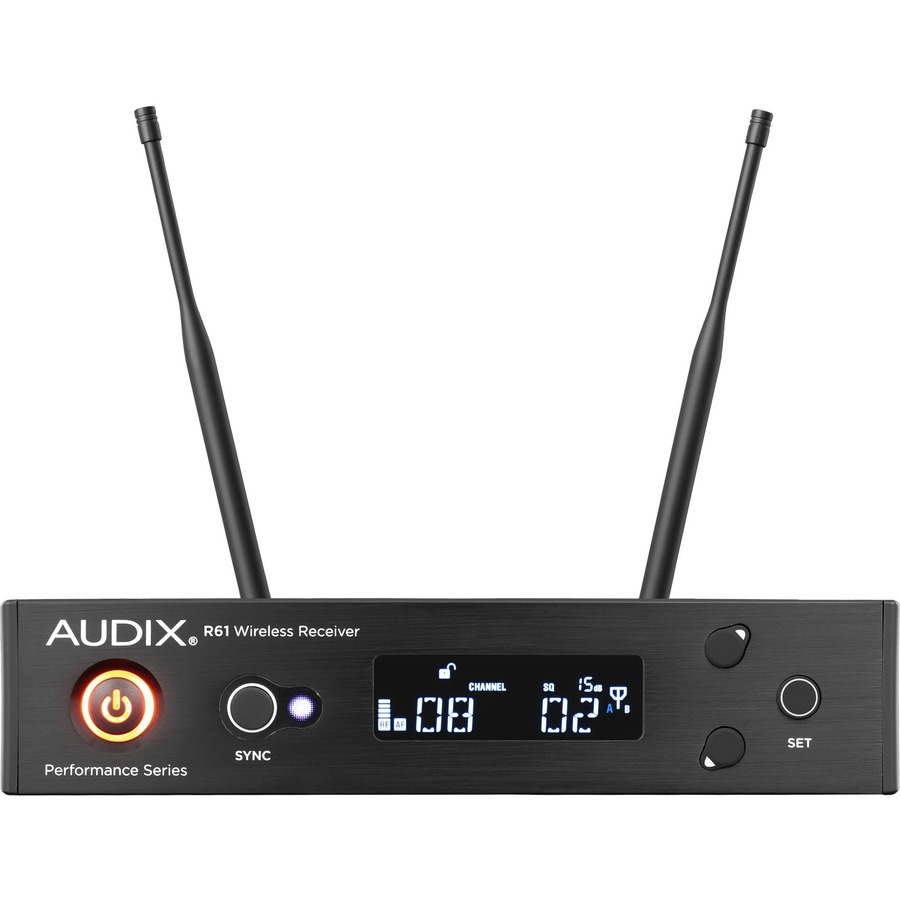

R61 True Diversity Receiver:

  • 64 MHz Wide spectrum tuning receiver
  • 207 Pre-coordinated frequencies for quick, easy, and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam
  • 2560 tunable frequencies
  • Dimension: 205 mm (W) x 206 mm (D) x 44 mm (H)
  • Weight: 2.43 lbs

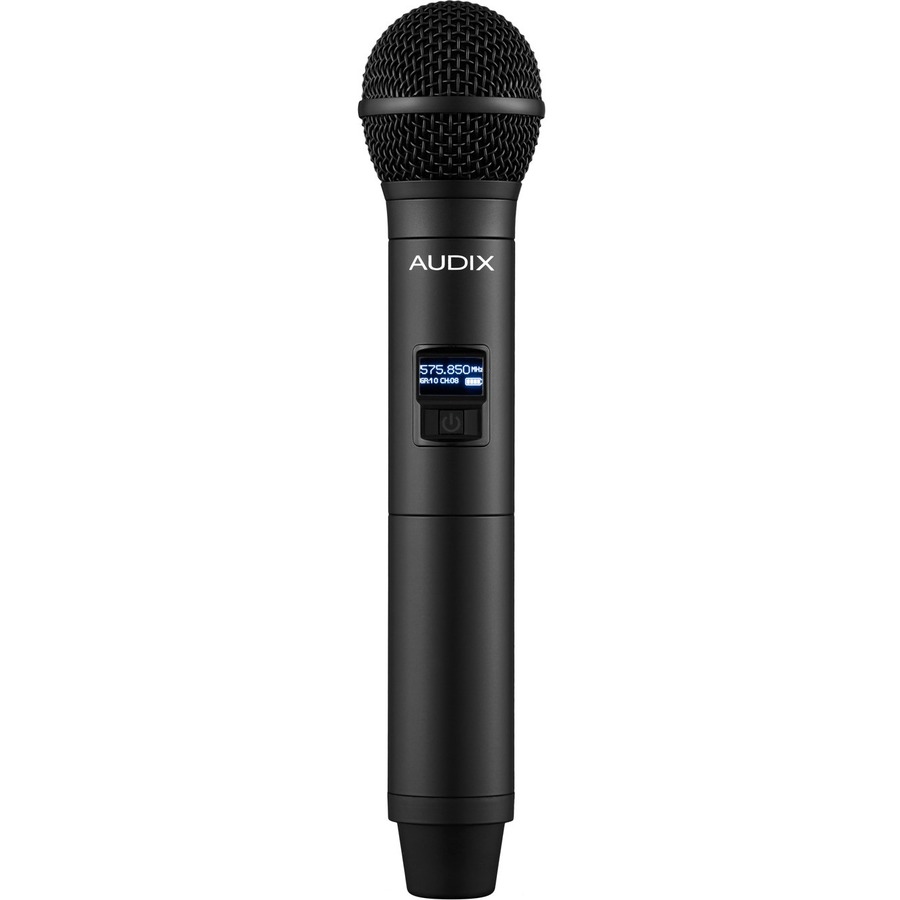

H60 OM5 Handheld Microphone:

  • 64 MHz Wide spectrum transmitter with OM5 dynamic capsule
  • Durable metal housing
  • Dimension: 2.1" diameter body, 10.43" (L)
  • Net Weight: 312 g (without battery)
