Audix- M40W6S

6 gooseneck;supercardioid capsule White

Manufacturer: Audix
Category: Wireless Microphones
SKU: M40W6S
Availability: Call
MSRP: $485.00
PRODUCT HIGHLIGHTS

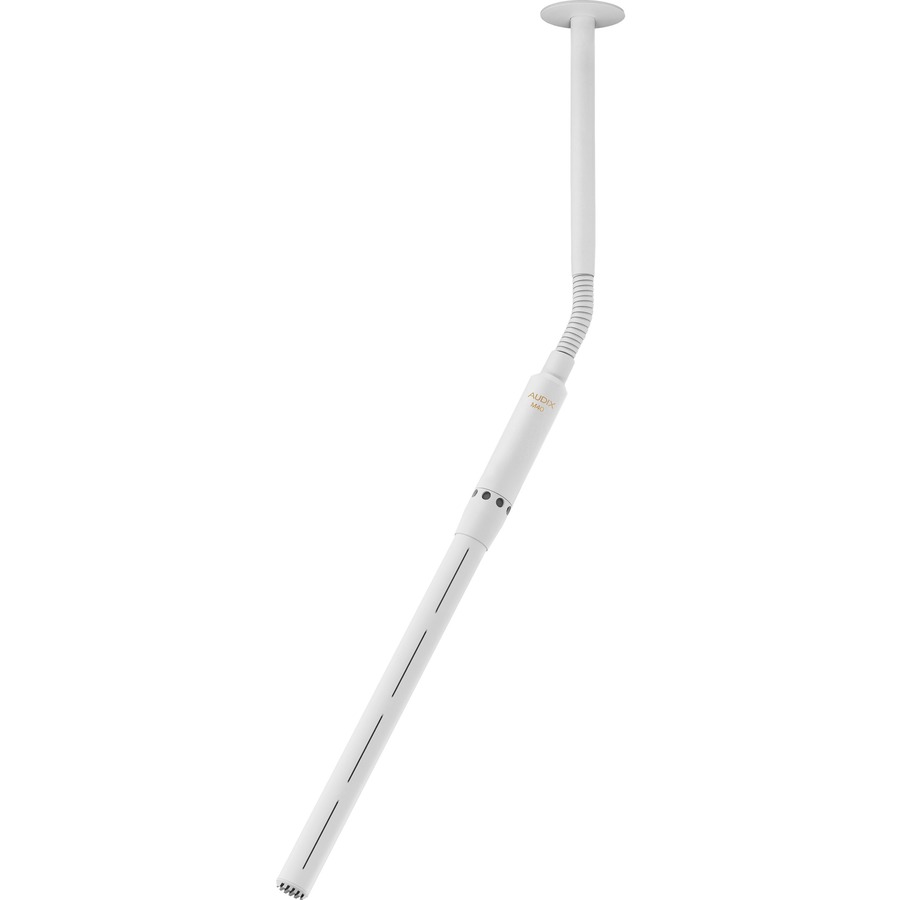

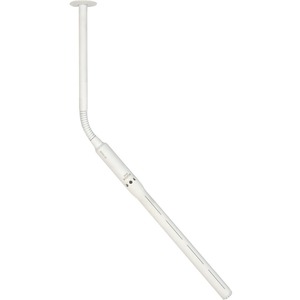

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the M40 include ceiling mounted video conferences, distance learning, hospital rooms, surveillance, and ambient room miking. Applications that utilize AVB transport can deploy the M40 audio signal over a single Ethernet cable. The M40 has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing the microphone the ability to be used in a wide variety of applications. The M40 is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a Phoenix connector. For installations where plenum rated cable is to be used, an optional nickel plated metal junction safety box is available.
  • Connectivity Technology: Wired
  • Cable Length: 1"
  • Minimum Frequency Response: 60 Hz
  • Maximum Frequency Response: 10 kHz
  • Impedance: 150 Ohm
  • Microphone Technology: Condenser
  • Polar Pattern: Cardioid
  • Polar Pattern: Hyper-cardioid
  • Microphone Type: Shotgun
  • Microphone Type: Gooseneck
  • Microphone Type: Ceiling Mount
  • Host Interface: Terminal Block
  • Product Color: White
  • Product Material: Copper
  • Product Material: Steel
  • Length: 2.1"
  • Weight (Approximate): 0.71 oz
  • Application/Usage: Video Conferencing
  • Application/Usage: E-learning
SPECIFICATIONS
General Information
ManufacturerAudix Microphones
Manufacturer Part NumberM40W6S
Manufacturer Website Addresshttp://www.audixusa.com
Brand NameAudix
Product SeriesM40
Product ModelM40W6S
Product NameMiniature High Output Ceiling Microphone
Packaged Quantity1
Product TypeMicrophone
Technical Information
Connectivity TechnologyWired
Cable Length1"
Minimum Frequency Response60 Hz
Maximum Frequency Response10 kHz
Impedance150 Ohm
Microphone
Microphone TechnologyCondenser
Polar PatternCardioid
Hyper-cardioid
Microphone TypeShotgun
Gooseneck
Ceiling Mount
Interfaces/Ports
Host InterfaceTerminal Block
Physical Characteristics
Product ColorWhite
Product MaterialCopper
Steel
Length2.1"
Miscellaneous
Package Contents
  • M40 Miniature Ceiling Microphone
  • 1 x CONN170F 1′ Integrated Microphone Cable
  • 1 x CONN170M The Mating Terminal Connector
Application/UsageVideo Conferencing
E-learning
Hospital
Surveillance
Ambient Miking
Lecture Hall
Meeting Room
Country of OriginUnited States
