Audio Technica- DISTRO4

DISTRO4 (10 x BNC Jumpers, 4 x DC Jumpers, 1 x AC Power Cord)

Manufacturer: Audio Technica
Category: Wireless Microphone Access.
SKU: DISTRO4
Availability: Call
MSRP: $599.00
PRODUCT HIGHLIGHTS

RF Venue product distributed by Audio-Technica

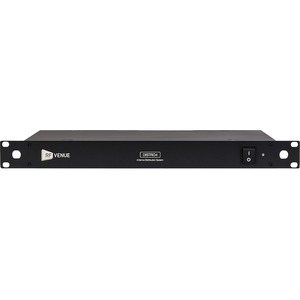

DISTRO4™ is a broadband UHF (470-952 MHz) antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. Four amplified outputs compensate for signal strength lost in the splitting process. Two or more units may be cascaded together to accommodate setups with larger channel counts.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply 12V DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4.

  • Four amplified outputs compensate for signal strength lost in the splitting process

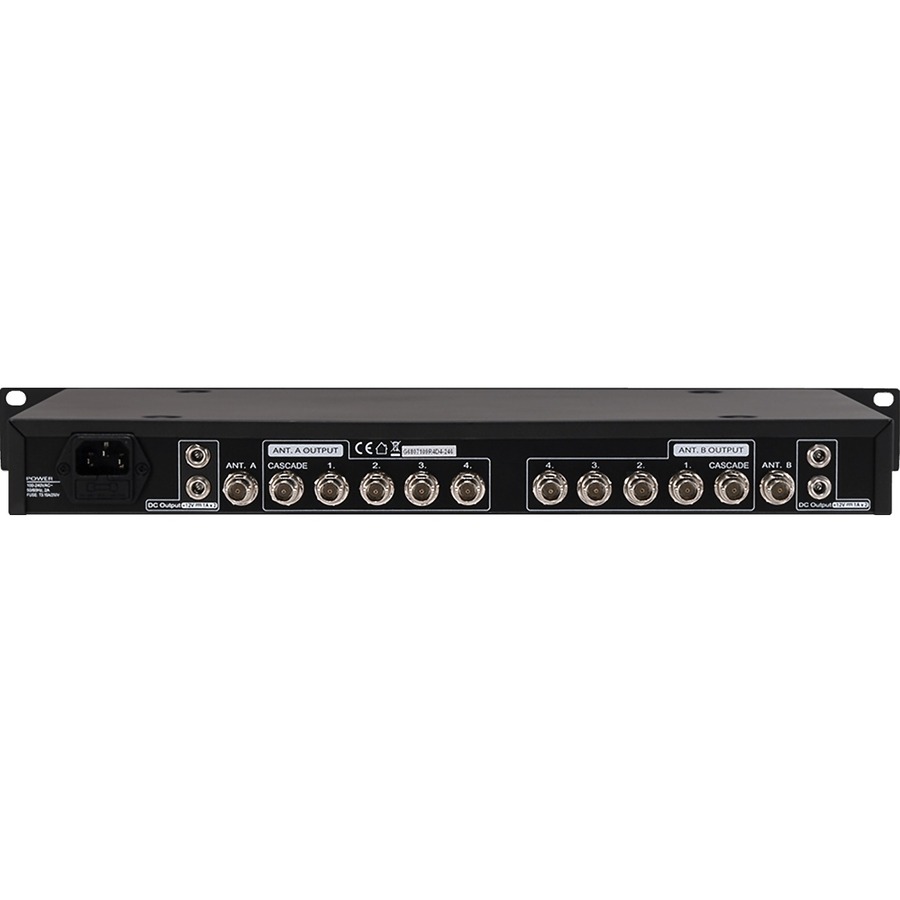

  • Cascade output allows two or more units to be connected together to accommodate more than four receivers
  • Internal switch for applying 12V DC power to antenna connections
  • DC output jacks supply power to connected receivers
  • Internal 2000 mA internal power supply (no wall wart)
  • Includes one AC cable, four DC cables, and 10 BNC jumpers
  • Full rack width (1 RU)
SPECIFICATIONS
General Information
ManufacturerAudio-Technica U.S., Inc
Manufacturer Part NumberDISTRO4
Manufacturer Website Addresshttp://www.audio-technica.com
Brand NameAudio-Technica
Product LineDISTRO4
Product NameRF Venue Antenna Distribution System DISTRO4
Product TypeSignal Amplifier
Technical Information
Minimum Frequency470 MHz
Maximum Frequency952 MHz
Interfaces/Ports
Number of Antenna Inputs2
Number of Antenna Outputs10
BNC InYes
BNC OutYes
Power Description
Input Voltage100 V AC
240 V AC
Miscellaneous
Package Contents
  • RF Venue Antenna Distribution System DISTRO4
  • 1 x AC Cable
  • 4 x DC Cables
  • 10 x BNC Jumpers
Environmentally FriendlyYes
Environmental CertificationWEEE
Warranty
Limited Warranty1 Year
