Audio Technica- M3M

M3 IEM Wireless System includes: M3T stereo transmitter with headphone output, M3

Manufacturer: Audio Technica
Category: Wireless Microphones
SKU: M3M
Availability: Call
MSRP: $799.00
PRODUCT HIGHLIGHTS
Audio-Technica's advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica's versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR/¼" combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.

More from the Manufacturer

  • Minimum Operating Frequency: 614 MHz
  • Maximum Operating Frequency: 865 MHz
  • Minimum Frequency Response: 60 Hz
  • Maximum Frequency Response: 13 kHz
  • Operating Range: 328.08 ft
  • XLR: Yes
  • 6.35mm ( 1/4"): Yes
  • Battery Run Time: 8 Hour
  • Height: 4.3"
  • Width: 2.8"
  • Depth: 1"
  • Length: 15.3"
  • Weight (Approximate): 4.69 oz
  • Weight (Approximate): 2.05 lb
  • Limited Warranty: 2 Year
SPECIFICATIONS
General Information
ManufacturerAudio-Technica U.S., Inc
Manufacturer Part NumberM3M
Manufacturer Website Addresshttp://www.audio-technica.com
Brand NameAudio-Technica
Product ModelM3
Product NameWireless In-Ear Monitor System
Product TypeWireless Microphone System
Technical Information
Minimum Operating Frequency614 MHz
Maximum Operating Frequency865 MHz
Minimum Frequency Response60 Hz
Maximum Frequency Response13 kHz
Operating Range328.08 ft
Interfaces/Ports
XLRYes
6.35mm (?1?4")Yes
Battery Information
Number of Batteries Supported2
Battery Size SupportedAA
Battery ChemistryAlkaline
Battery Run Time8 Hour
Power Description
Input Voltage Range12 V DC to 18 V DC
Physical Characteristics
Length15.3"
Miscellaneous

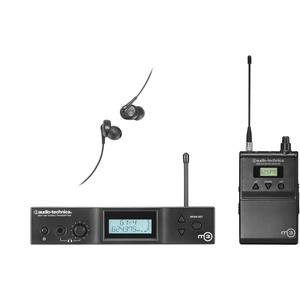

Package Contents
  • EP3 Headphones:In-ear dynamic headphones offer high-fidelity sound and excellent isolation
  • M3T Stereo Transmitter:Wireless UHF transmitter (frequency-agile) offers LCD display and 1321 user-selectable frequencies
  • M3R Stereo Receiver:Personal Mix Control in a lightweight body-pack with backlit LCD display
  • AC adapter (Country Dependant)
  • Rack Mount Adapters
  • Flexible Antenna
Additional Information
  • High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume
  • 1321 selectable UHF channels with automatic frequency scanning
  • Up to 16 simultaneous systems per frequency band
  • Three receiver modes: Personal Mix, stereo, and mono
  • Personal Mix Control allows volume and mix control of two independent signals at the receiver
  • LCD information display offers step-through menus for setting preferences
  • XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
  • Adjustable squelch eliminates annoying static
  • Pilot tone protects against RF interference when transmitter is turned off
  • Multi-level limiter (defeatable) helps protect hearing from sudden peaks
  • Portable system is quick to load and set up
  • Reduces on-stage audio clutter for better overall mix & less feedback
  • Use any number of Stereo Receivers (with individual mixes) on the same frequency
  • Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation
  • Personal fit with 3 sizes of rubber eartips plus ear-conforming foam tips
  • Selectable auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input
Warranty
Limited Warranty2 Year
