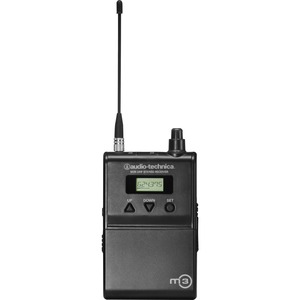

Audio Technica- M3RM

M3 system body-pack stereo receiver, 614.000-647.000 MHz (TV 38-43)

Manufacturer: Audio Technica
Category: Wireless Microphones
SKU: M3RM
Availability: Call
MSRP: $449.00
PRODUCT HIGHLIGHTS
Audio-Technica's advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica's versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR/¼" combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.
  • High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume
  • 1321 selectable UHF channels with automatic frequency scanning
  • Up to 16 simultaneous systems per frequency band
  • Three receiver modes: Personal Mix, stereo, and mono
  • Personal Mix Control allows volume and mix control of two independent signals at the receiver
  • LCD information display offers step-through menus for setting preferences
  • XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
  • Adjustable squelch eliminates annoying static
  • Pilot tone protects against RF interference when transmitter is turned off
  • Multi-level limiter (defeatable) helps protect hearing from sudden peaks
  • Depth: 1"
  • Weight (Approximate): 3.99 oz
SPECIFICATIONS
General Information
ManufacturerAudio-Technica U.S., Inc
Manufacturer Part NumberM3RM
Manufacturer Website Addresshttp://www.audio-technica.com
Brand NameAudio-Technica
Product ModelM3R
Product NameWireless In-Ear Monitor System
Product TypeWireless Microphone System Receiver
Technical Information
Minimum Operating Frequency614 MHz
Maximum Operating Frequency647 MHz
Minimum Frequency Response60 Hz
Maximum Frequency Response13 kHz
Operating Range328.08 ft
Interfaces/Ports
XLRYes
Mini-phoneYes
Battery Information
Number of Batteries Supported2
Battery Size SupportedAA
Battery Run Time8 Hour
Power Description
Input Voltage1.5 V DC
Miscellaneous
Package Contents
  • Wireless In-Ear Monitor System
  • EP3 in-ear dynamic headphones
  • Extension cable/adapter with 3.5 mm connector
  • Interchangeable earpieces (Small, Medium & Large)
  • Ear-conforming foam tips
  • Soft pouch
