Name: LVS1UP
SKU: 841872161167

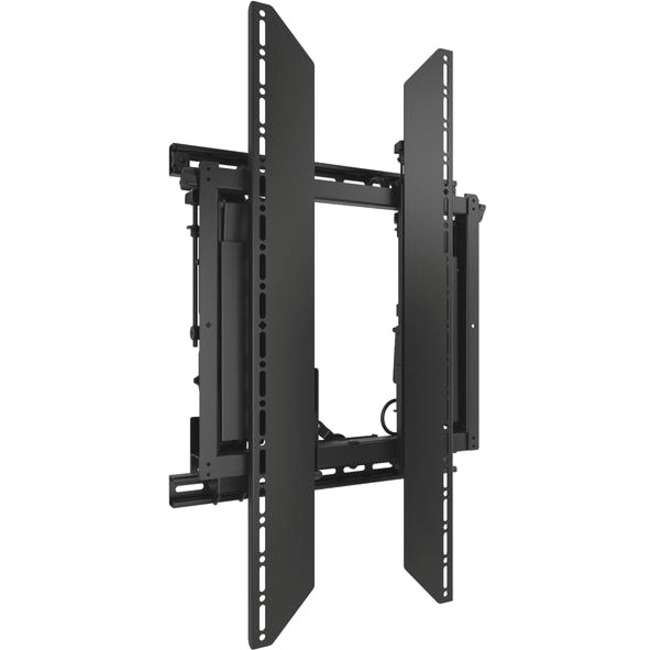

Chief- LVS1UP

ConnexSys Video Wall System Port with Rails

Manufacturer: Chief

Category: Flat Wall Mounts

SKU: LVS1UP

Availability: In Stock

MSRP: $1,035.00

Quick Quote

PRODUCT HIGHLIGHTS

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVS1UP ConnexSys Video Wall system portrait mount ships with rails for each mount.

Device Supported: Flat Panel Display
Number of Displays Supported: 1
Maximum Load Capacity: 150 lb
Minimum Screen Size Supported: 40"
Maximum Screen Size Supported: 80"
Height Adjustable: Yes
Features: Tilt
Features: Lateral Adjustment
Features: Adjustable Depth
Maximum Adjustable Depth: 13.40"
Product Color: Black
VESA Mount Compatible: Yes
Height: 32.5"
Width: 19.5"
Depth: 4"
Compatibility: TV
Country of Origin: China
Limited Warranty: 10 Year
Limited Warranty: 10 Year
Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

SPECIFICATIONS

General Information
Manufacturer	Chief Manufacturing
Manufacturer Part Number	LVS1UP
Manufacturer Website Address	http://www.chiefmfg.com
Brand Name	Chief
Product Model	LVS1UP
Product Name	ConnexSys Video Wall Portrait Mounting System with Rails
Product Type	Wall Mount
Product Information
Device Supported	Flat Panel Display
Maximum Load Capacity	150 lb
Minimum Screen Size Supported	40"
Maximum Screen Size Supported	80"
Maximum Adjustable Depth	13.40"
Features	Adjustable Depth
	Lateral Adjustment
	Tilt
	Adjustable Height
Physical Characteristics
Color	Black
VESA Mount Compatible	Yes
VESA Mount Standard	800 x 400
	200 x 100
Height	32.5"
Width	19.5"
Depth	4"
Miscellaneous
Additional Information	Compatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect latching secures displays PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Security - pad lock ¼" shank diameter
Compatibility	TV
Warranty
Limited Warranty	10 Year
