Da-Lite- 14097

ADV DLX TNSD 283D HD1.1

Manufacturer: Da-Lite
Category: Screens
SKU: 14097
Availability: Call
MSRP: $23,268.00
PRODUCT HIGHLIGHTS

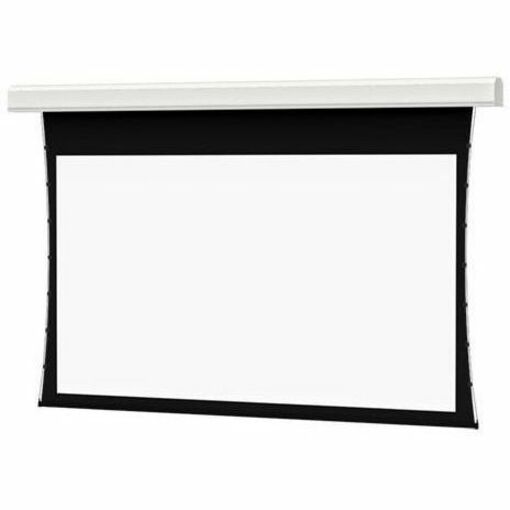

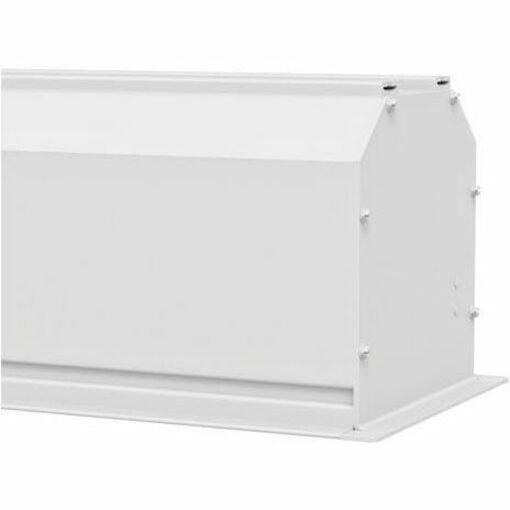

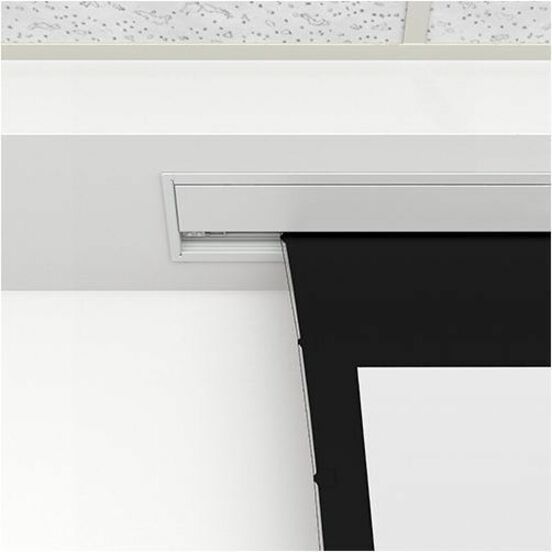

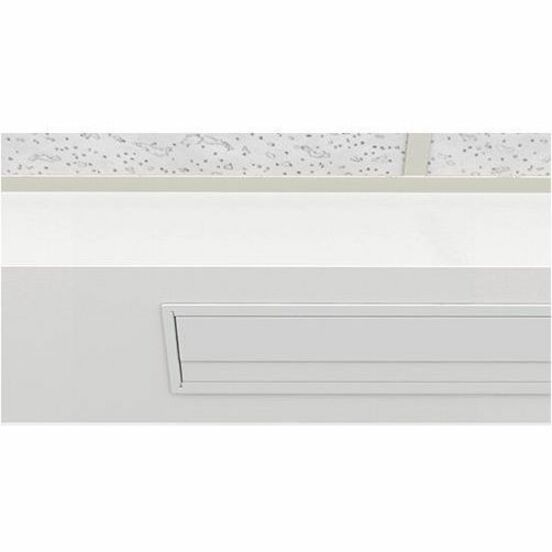

The Tensioned Advantage ceiling-recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the large format screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the large format screen housing to the structure above the drop ceiling. Tensioned Advantage with SightLine Da-Lite's new cable drop feature, SightLine, available with the tried-and-true Tensioned Advantage (up to 177in Diagonal 16:9 and up to 182in Diagonal 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop - the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70in between the ceiling and the top of the screen, making ordering a snap. What's more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future-proofing for height adjustability - this is the fine line between status quo and jaw drop. The Tensioned Advantage with SightLine is now available in 21:9 ultrawide format. Ultrawide format is quickly becoming the standard for displaying hybrid video conferencing solutions, where all attendees, whether they are in person or virtual, are equitably seen and heard.
  • Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Decora-style, three-button wall switch
  • All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
  • Smooth Roll Technology to keep your screen perfectly flat
  • TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models
SPECIFICATIONS
General Information
ManufacturerLegrand Group
Manufacturer Part Number14097
Manufacturer Website Addresshttp://www.legrand.us
Brand NameDa-Lite
Product LineTensioned Advantage
Product NameTensioned Advantage Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size283"
Screen Height150"
Screen Width240.2"
Screen FabricHD Progressive 1.1
Aspect Ratio16:10
Projection FormatsWidescreen
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeCeiling Mount
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationGREENGUARD
GREENGUARD Gold
Da-Lite Tensioned Advantage Projection Screen - Ceiling-Recessed - HD Progressive 1.0 - Automatic Closure Door - 283in
16:10 - HD Progressive 1.1 - 150" Height x 240.2" Width - Widescreen - Ceiling Mount
