Da-Lite- 20848FLS

ADVANTAGE TNSD 123D DM

Manufacturer: Da-Lite
Category: Screens
SKU: 20848FLS
Availability: Call
MSRP: $4,108.00
PRODUCT HIGHLIGHTS

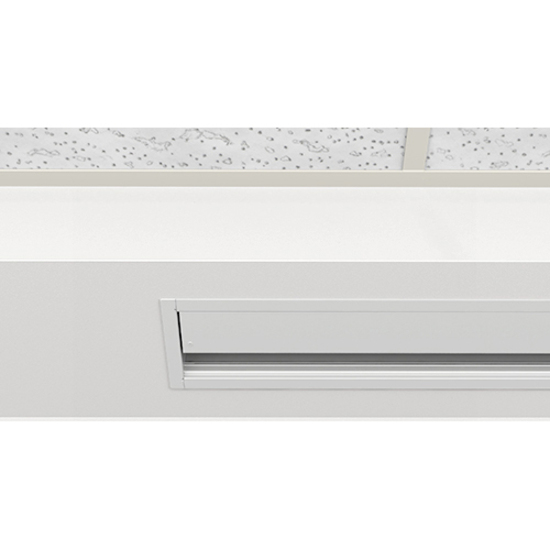

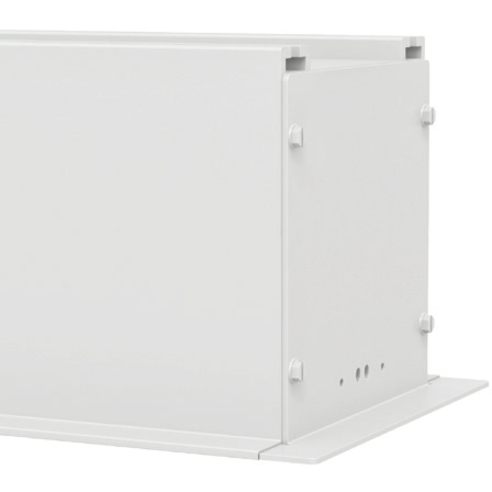

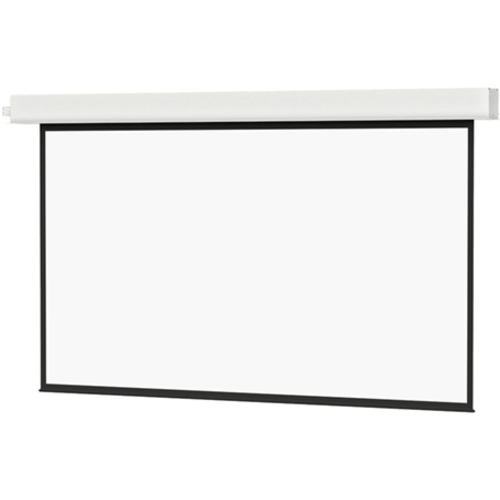

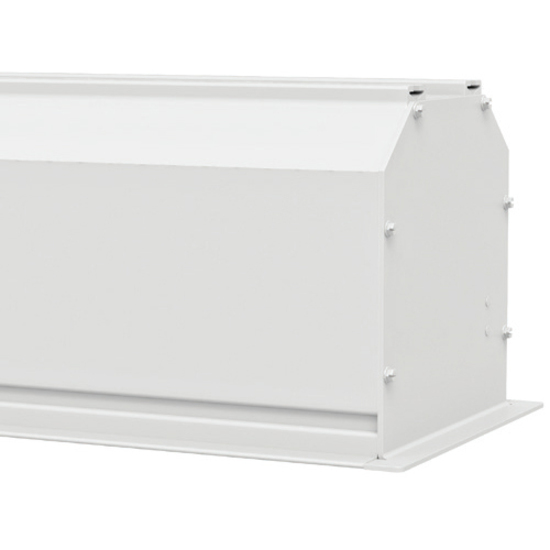

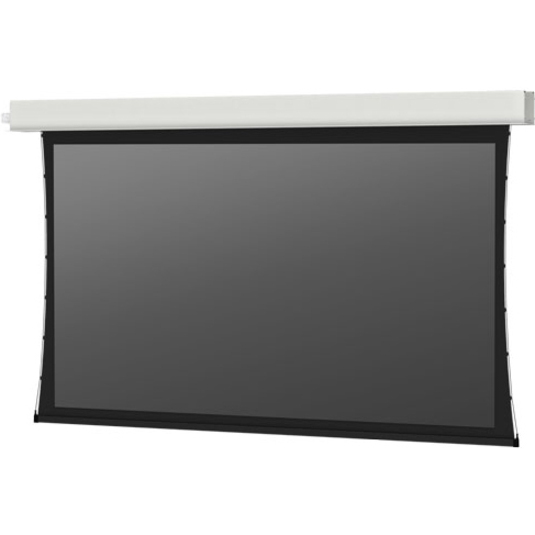

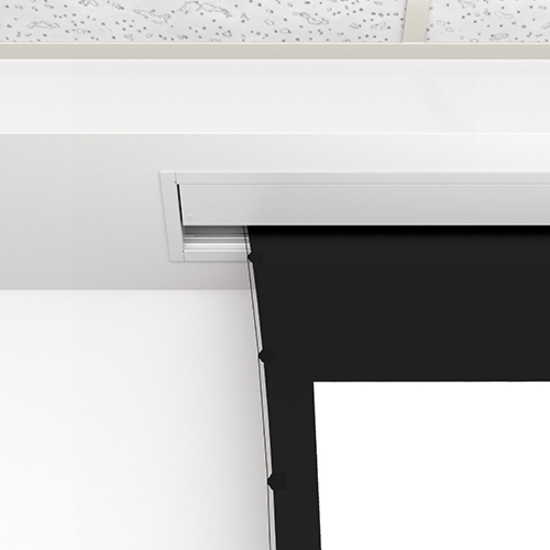

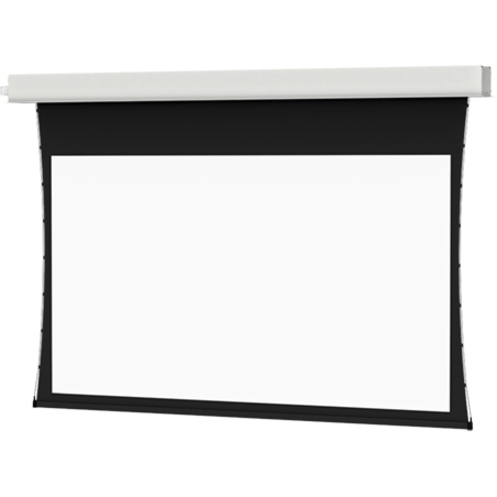

The Tensioned Advantage ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling. Tensioned Advantage with SightLine Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Tensioned Advantage (up to 177" Diagonal 16:9 and up to 182" Diagonal 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future proofing for height adjustability – this is the fine line between status quo and jaw drop. 21:9 Ultrawide Format The Tensioned Advantage with SightLine is now available in 21:9 Ultrawide Format part numbers. Ultrawide format is quickly becoming the standard for displaying hybrid video conferencing solutions, where all attendees, whether they are in person or virtual, are equitably seen and heard.
  • All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
  • Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10'x10')
  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Smooth Roll Technology to keep your screen perfectly flat
  • Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
  • Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
  • Support includes a comprehensive five-year warranty to keep you confident in your purchase
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Tensioning Cable System to prevent warping and ensure even lateral tension
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness
  • Seamless surfaces in all models
  • Parallax 0.8 surface for standard throw projectors (1.5:1 or greater) - See the Product Information sheet for projector placement
  • Parallax Stratos 1.0 surface for standard throw projectors (1.0:1 or greater)
  • NOTE: The Advantage Electrol featuring Parallax Pure will look visibly different when compared to other Da-Lite tensioned screens with vinyl surfaces. This is due to the nature of the Parallax Pure material, which is a micro-layered, high-grade plastic...
SPECIFICATIONS
General Information
ManufacturerLegrand Group
Manufacturer Part Number20848FLS
Manufacturer Website Addresshttp://www.legrand.us
Brand NameDa-Lite
Product LineTensioned Advantage Electrol
Product NameTensioned Advantage Electrol Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size123"
Screen Height65"
Screen Width104"
Screen FabricDa-Mat
Parallax Pure
Aspect Ratio16:10
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeCeiling Mount
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationGREENGUARD Gold
Warranty
Limited Warranty5 Year
