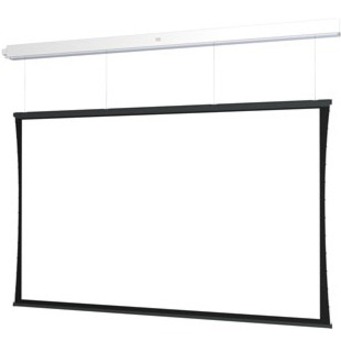

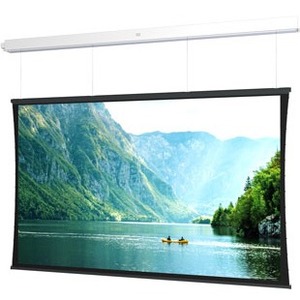

Da-Lite- DL15027L

ADV TNSD SIGHTLINE 164D PRLX STR 1.0

Manufacturer: Da-Lite
Category: Screens
SKU: DL15027L
Availability: Call
MSRP: $9,005.00
PRODUCT HIGHLIGHTS
The Tensioned Advantage ceiling recessed electric screen series is designed with ceiling trim to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling. Tensioned Advantage with SightLine Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Tensioned Advantage (up to 177" Diagonal 16:9 and up to 182" Diagonal 16:10) electric screen, gives the impression of a floating screen. In its single roller design, a suspension system features 3 or 4 thin cables, eliminating the need for a black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now the vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation, and future-proofing for height adjustability are the fine line between status quo and jaw drop.
  • Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Decora-style, three-button wall switch
  • All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
  • Smooth Roll Technology to keep your screen perfectly flat
  • TruGuide™ Electric Screen Tensioning System provides optimal viewing surface smoothness
  • Standard black backing retains projected brightness on front projection surfaces
  • Seamless surfaces in all models
SPECIFICATIONS
General Information
ManufacturerLegrand Group
Manufacturer Part NumberDL15027L
Manufacturer Website Addresshttp://www.legrand.us
Brand NameDa-Lite
Product LineTensioned Advantage
Product NameTensioned Advantage Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size164"
Screen Height87"
Screen Width139"
Screen FabricParallax Stratos 1.0
Aspect Ratio16:10
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeRecessed/In-Ceiling Mount
Product ColorWhite
Miscellaneous
Environmentally FriendlyYes
Environmental CertificationGREENGUARD
GREENGUARD Gold
Warranty
Limited Warranty5 Year
