Draper- 143024QU

161" Diagonal HDTV (16:9) XT1000 VB Matt White

Manufacturer: Draper
Category: Screens
SKU: 143024QU
Availability: Call
MSRP: Call for Price
PRODUCT HIGHLIGHTS

The ultimate access v features a tab-tensioned, ceiling-recessed screen with complete concealment and a sleek design, free of visible fasteners.

The ultimate access v projection screen features a sleek design with no exposed fasteners, ideal for mid-sized training rooms, boardrooms, home theaters, and universities. its case includes a motorized trap door for smooth screen descent and a ceiling closure panel that fully conceals the screen. the tab-tensioned design ensures a flat viewing surface for superior image quality, with rf-welded tabs preventing separation and stickiness. a bottom access panel simplifies maintenance, while early case installation prevents damage and allows the screen to be added later.

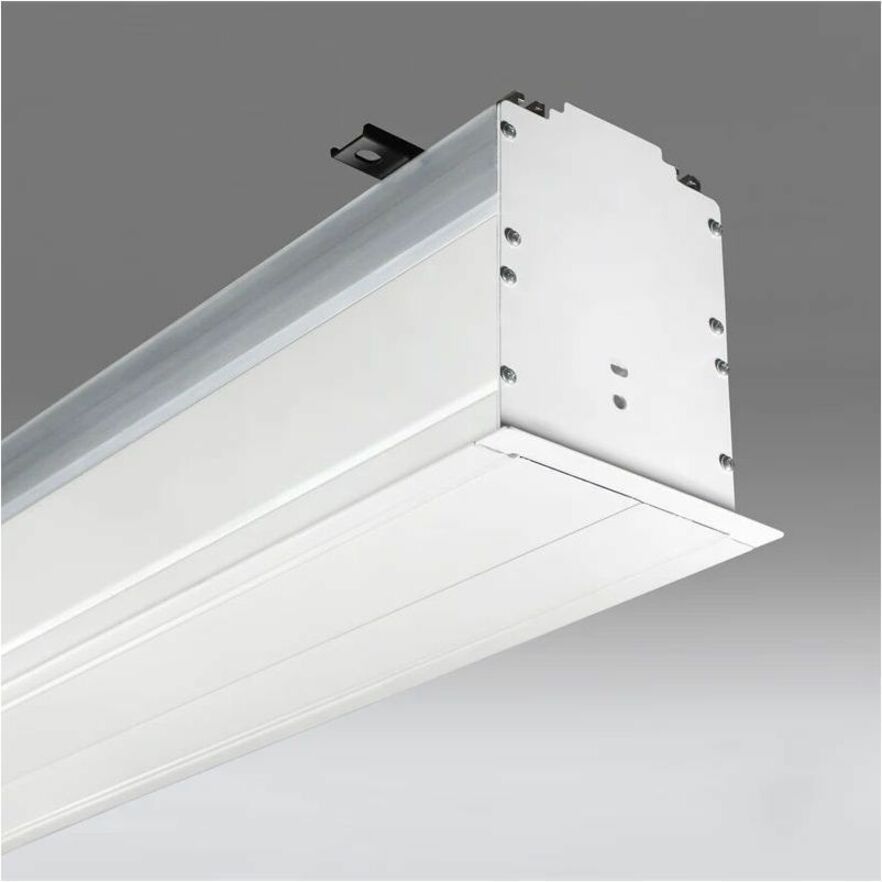

  • Case dimensions: 9-7/8" high x 8" deep (25 cm x 20 cm), with trim flange.
  • Built-in controls and mounting brackets may increase case dimensions. See Submittal for details.
  • Maximum image width up to 12' (366 cm) wide, depending on surface selection. Custom sizes available.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top allow for mounting adjustments; inside brackets accommodate different screen sizes.
  • Bottom access panel door is detachable or hangs with a 'T' bracket for easy maintenance.

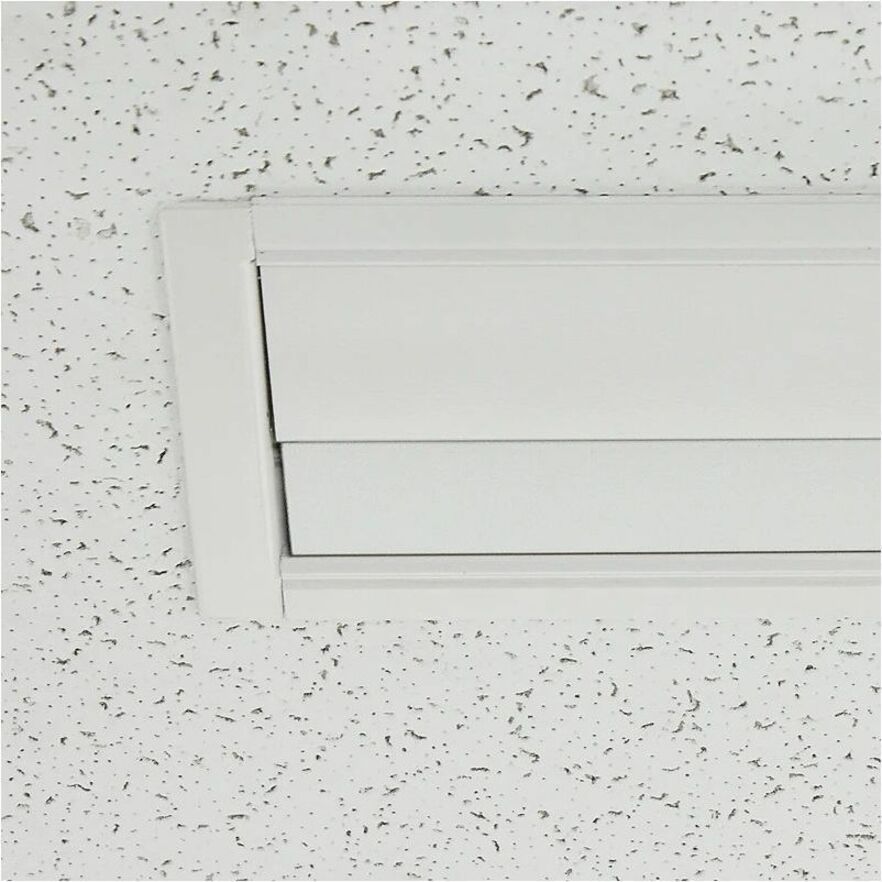

  • Ceiling closure panel can be finished by a contractor to match the ceiling.

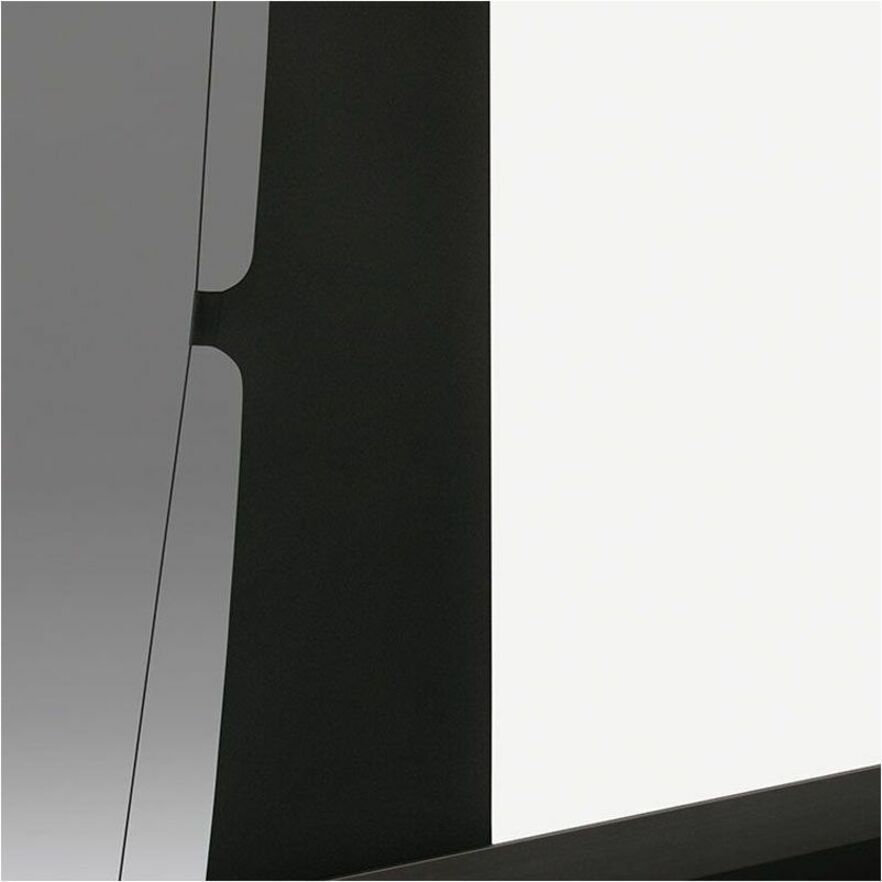

  • RF-welded tabs create a durable seal, eliminating separation and stickiness
  • Quick-connect wiring allows early case installation, with the screen added later.
SPECIFICATIONS
General Information
ManufacturerDraper, Inc
Manufacturer Part Number143024QU
Manufacturer Website Addresshttp://www.draperinc.com
Brand NameDraper
Product LineUltimate Access V
Product NameUltimate Access V Electric Projection Screen
Product TypeProjection Screen
Technical Information
Diagonal Image Size161"
Screen Height79"
Screen Width140"
Screen FabricMatt White XT1000VB
Aspect Ratio16:9
Screen Gain1
Projection FormatsHDTV
Screen Folding MechanismElectric
Physical Characteristics
Mount TypeCeiling Mount
Recessed/In-Ceiling Mount
Color FamilyWhite
Product ColorWhite
Miscellaneous
Package Contents
  • Ultimate Access V Electric Projection Screen
  • Motorized trap Door
  • Hoisting Brackets
  • Three-position Switch
  • Quiet low-Voltage Motors
Environmentally FriendlyYes
Environmental CertificationGREENGUARD
GREENGUARD Gold
Warranty
Limited Warranty5 Year
Draper Ultimate Access V 161" Electric Projection Screen
16:9 - Matt White XT1000VB - 79" Height x 140" Width - HDTV - 1 Gain - Ceiling Mount, Recessed/In-Ceiling Mount
