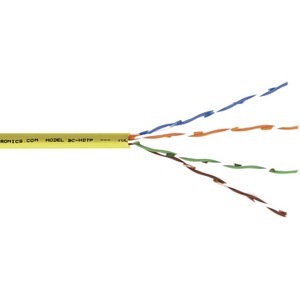

Kramer- BC-HDTP-1300

Ultra Low Skew UTP, 4 Pairs, 23 AWG, Solid Bulk Cable - 1300

Manufacturer: Kramer
Category: Control Cable
SKU: BC-HDTP-1300
Availability: Call
MSRP: $736.00
PRODUCT HIGHLIGHTS

Kramer's BC-HDTP is an unshielded twisted pair (UTP) type cable designed for use in the most demanding long distance video transmission over CAT 5/5e twisted pair cable applications, and is an ideal companion to Kramer's Cobra™ twisted pair series transmitter/receiver sets. BC-HDTP resembles typical CAT 5/5e cable, but with internal components optimized for transmission of video/audio signals rather than high-speed data.

  • Quality Construction - Durable and flexible CM rated bulk cable. Four pairs of solid 23AWG copper in one jacket. Outer jacket is muted yellow color.
  • Precision Engineered - Four pairs are twisted at the same ratio so the actual length of each is identical. Note that BC-HDTP is not suited for high-speed data or network applications.
  • Optimized for Ultra High-Resolution Video/Audio Signals - Designed to match the high-resolution capability of Cobra's twisted pair hardware of 1920x1200 transmitted over 400m (1300ft). BC-HDTP is also an ideal choice for use with any video over CAT 5/5e twisted pair product, including all of Kramer's non-Cobra models.
  • Ultra Low Skew Performance - Video shift or "skew" is virtually eliminated in long runs because the RGB color signals arrive at the same time. Some skew compensation may still be required on extremely long runs, but the amount is significantly improved because of the ultra low skew design of the BC-HDTP.
  • Length - Available in pull boxes of 213/396m (700/1300ft)
  • Cable Type: Bare Wire
  • Cable Length: 1300 ft
  • Connector Type on First End: Bare Wire
  • Connector on First End Details: Bare Wire
  • Connector Type on Second End: Bare Wire
  • Connector on Second End Details: Bare Wire
  • Shielding: No
  • Jacket Type: CM
  • Jacket Type: CMH
  • Device Supported: Network Device
  • Device Supported: Transmitter
  • Device Supported: Receiver
  • American Wire Gauge: 23 AWG
  • Features: Ultra Low Skew
  • Features: Flexible
  • Jacket Color: Yellow
  • Jacket Color: Black
  • Insulation Color: Blue
  • Insulation Color: White
SPECIFICATIONS
General Information
ManufacturerKramer Electronics LTD
Manufacturer Part NumberBC-HDTP-1300
Manufacturer Website Addresshttp://www.kramerelectronics.com
Brand NameKramer
Product ModelBC-HDTP-1300
Product NameBC-HDTP High-Performance Ultra-Low Skew UTP Bulk Cable
Package TypeBulk
Product TypeNetwork Cable
Technical Information
Cable TypeBare Wire
Cable Length1300 ft
Connector on First EndBare Wire
Connector on Second EndBare Wire
FeaturesUltra Low Skew
Flexible
ShieldingNo
Jacket TypeCM
CMH
Device SupportedNetwork Device
Transmitter
Receiver
American Wire Gauge23 AWG
Physical Characteristics
ColorBlue Insulation
White Insulation
Orange Insulation
Green Insulation
Yellow Jacket
Black Jacket
Product MaterialBare Copper
Insulation MaterialHigh-density Polyethylene (HDPE)
Material Details

Bare Copper - Conductor

Miscellaneous
Environmentally FriendlyYes
Environmental CertificationRoHS
