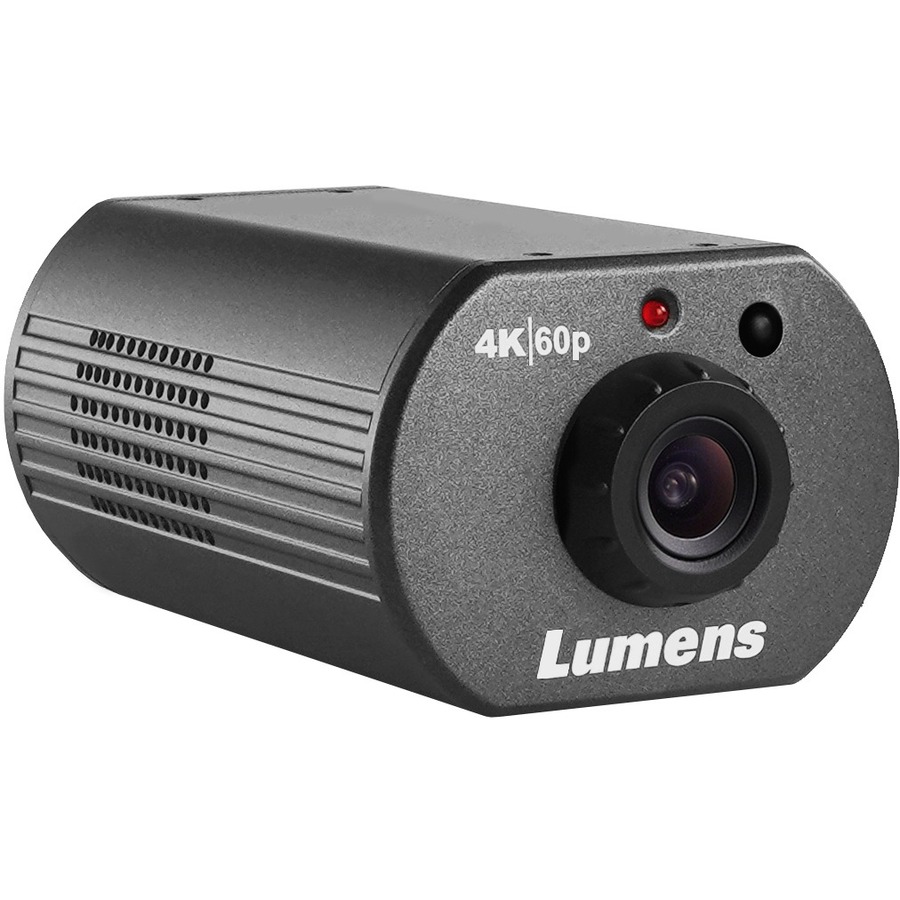

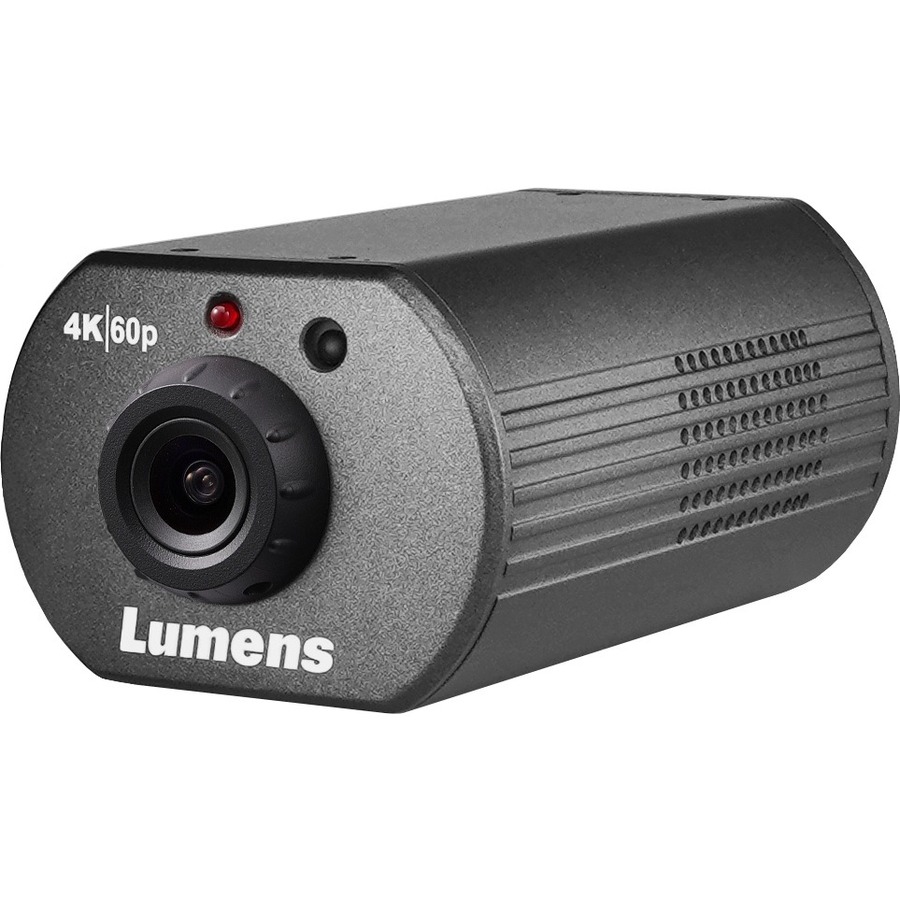

Lumens- VC-BC301P

4K IP POV Camera

Manufacturer: Lumens
Category: PTZ Cameras
SKU: VC-BC301P
Availability: Call
MSRP: $1,434.00
PRODUCT HIGHLIGHTS

4K 60fps Image Quality
The VC-BC301P is designed around a large, high sensitivity 1/1.8" Sony sensor which delivers excellent 4K and HD image quality in all lighting conditions. Delivering broadcast-quality results, this compact camera can be used for a wide range of applications including live-action 60fps sports, e-learning, e-gaming, visual radio or studio production.

102° Wide Viewing Angle
The lens' 102-degree horizontal viewing angle extends the versatility of the camera even further. Placed close to the subject, the camera can still frame multiple studio guests or gamers. Placed at a distance or a few meters, it can capture the full width of a video studio, performance area, radio studio, or demo space. Small and unobtrusive, it is well suited for fixed rig documentary production or POV sports broadcasting.

Live Video Production
VC-BC301P plays well with different workflows and installations. It supports IP delivery for remote monitoring and streaming direct to cloud services and streaming platforms such as YouTube, Livestream, Facebook, and Twitch. Its 4K HDMI output integrates with video production and AV environments while the USB connectivity gives it a role in video conferencing, unified communication, and collaboration spaces.

Fast Installation

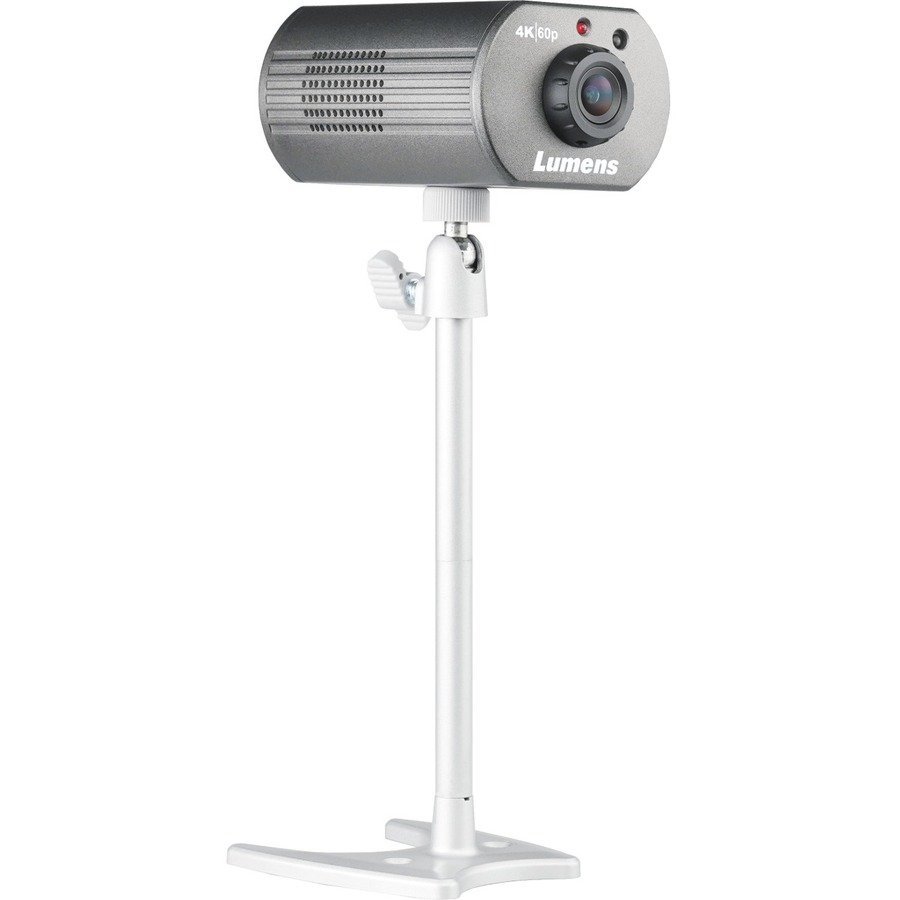

Lightweight and compact, VC-B301P can be installed in virtually any location including on ceiling mounts, light weight tripods and robotic heads. Operated by power over Ethernet (PoE) or a DC power supply, the camera can be positioned with ease. The availability of power, video and control over a single Ethernet cable gives integrators the ultimate in speed of installation. VC-B301 is easy to live with, whether you're an installer, operator or producer.

Total Control

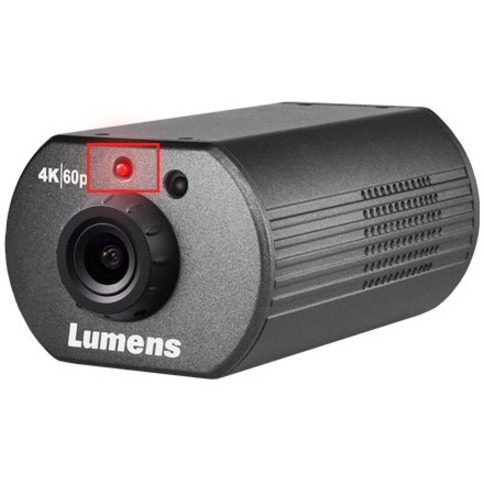

The VC-BC301P's tally light provides visual confirmation to talent in front of the lens. Behind the camera, operators (local or remote) have a choice over control protocols including Visca and Onvif, with signals communicated over IP. Connected as a webcam over USB, the camera can be controlled via a PC or Mac. Finally, an optional infrared remote is available for in-room control.

  • HD Recording: Yes
  • Recording Formats: 4K
  • Image Sensor Type: CMOS
  • Color Supported: Color
  • Field of View: Horizontal Viewing Angle 102° Vertical Viewing Angle 57.4° Diagonal Viewing Angle 117°
  • Effective Camera Resolution: 9.2 Megapixel
  • Video Formats: HEVC
  • Video Formats: H.264
  • Video Formats: H.265 (HEVC)
  • Video Formats: MJPEG
  • Maximum Video Resolution: 3840 x 2160
  • Maximum Frame Rate: 60 fps
  • Analog Video Signal Format: 3G-SDI
  • Lens Type: Fixed
  • Maximum Focal Length: 4.57 mm
  • Lens Included: Yes
  • Maximum Aperture: f/1.6
  • Shortest Shutter Speed: 1/10000 Second
  • Longest Shutter Speed: 1 Second
SPECIFICATIONS
General Information
ManufacturerLumens
Manufacturer Part NumberVC-BC301P
Manufacturer Website Addresshttp://www.lumens.com.tw
Brand NameLumens
Product ModelVC-BC301P
Product Name4K IP POV Camera
Product TypeNetwork Camera
Technical Information
Recording Formats4K
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of ViewHorizontal Viewing Angle 102° Vertical Viewing Angle 57.4° Diagonal Viewing Angle 117°
Effective Camera Resolution9.2 Megapixel
Video
Video FormatsHEVC
H.264
H.265 (HEVC)
MJPEG
Maximum Video Resolution3840 x 2160
Maximum Frame Rate60 fps
Analog Video Signal Format3G-SDI
Lens
Lens TypeFixed
Maximum Focal Length4.57 mm
Lens IncludedYes
Maximum Aperturef/1.6
Exposure
Shortest Shutter Speed1/10000 Second
Longest Shutter Speed1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes

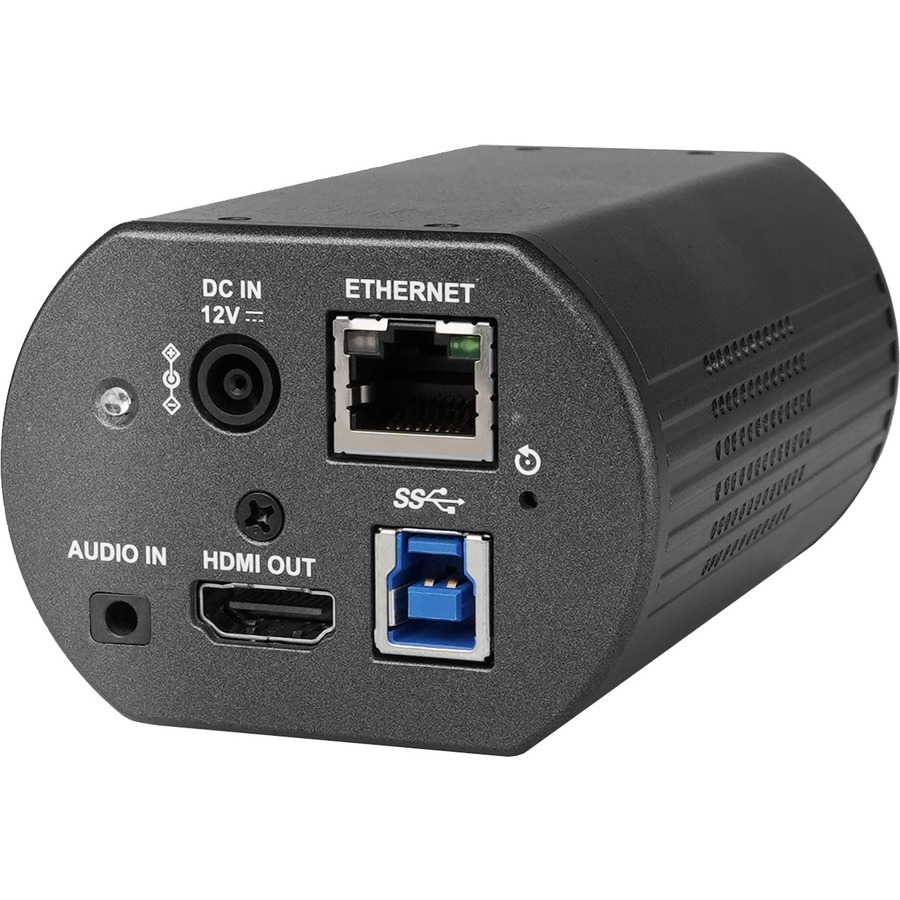

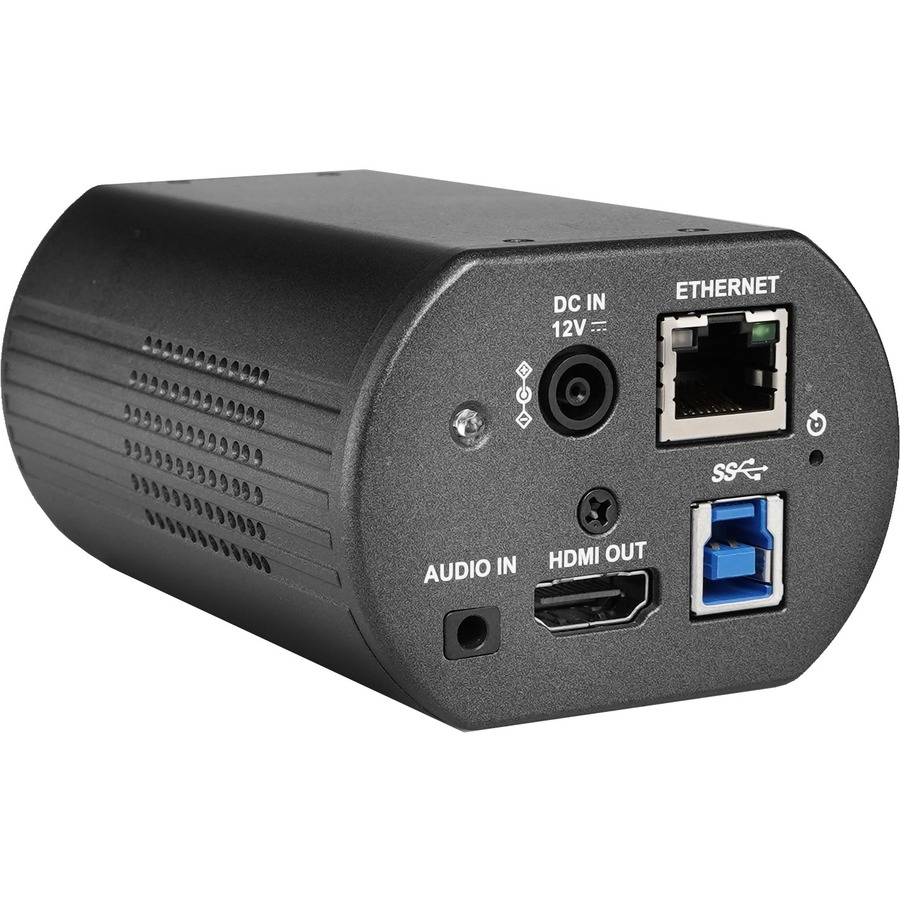

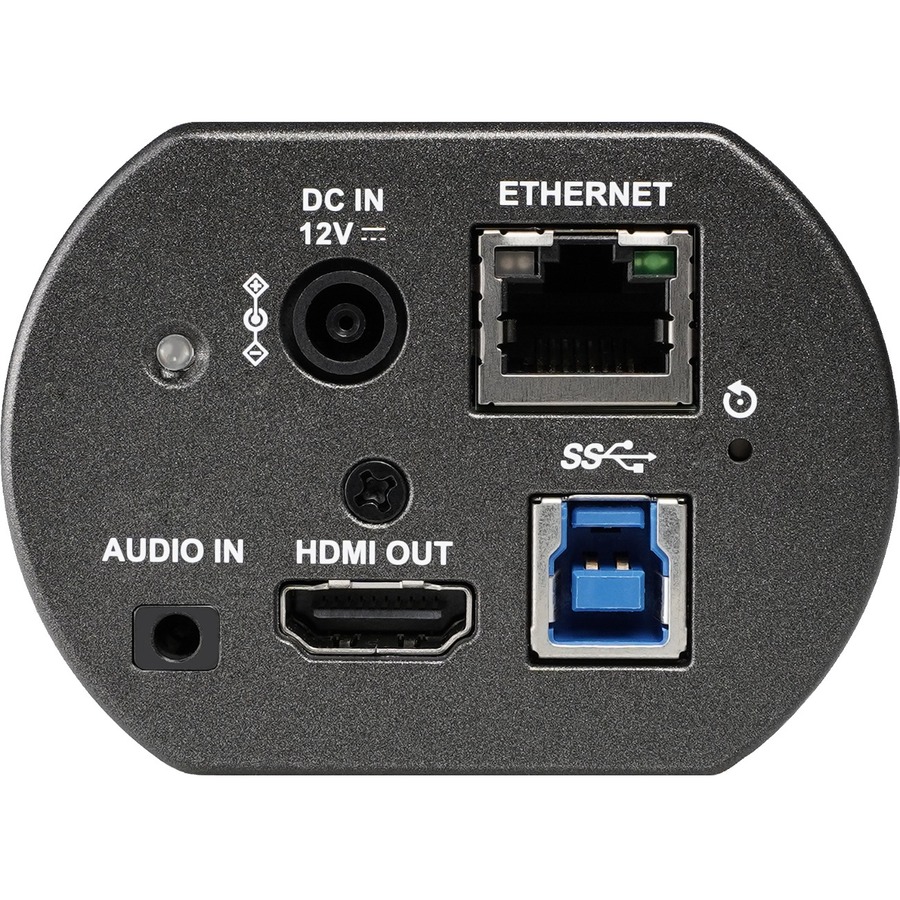

Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Power Description
Input Voltage12 V DC
Physical Characteristics
Mount TypeCeiling Mount
Form FactorBox
Miscellaneous
FeaturesAuto Gain Control
ePTZ
Built-in Tally Light
Microphone In
Audio Compression
Wide Dynamic Range
3D Noise Reduction
Automatic White Balance
Package Contents
  • 4K IP POV Camera
  • Instruction for Installation
  • Power Adapter
  • AC Power Cord Bracket Accessory Kit
  • 3PIN to 2PIN Adapter (For Japan only)

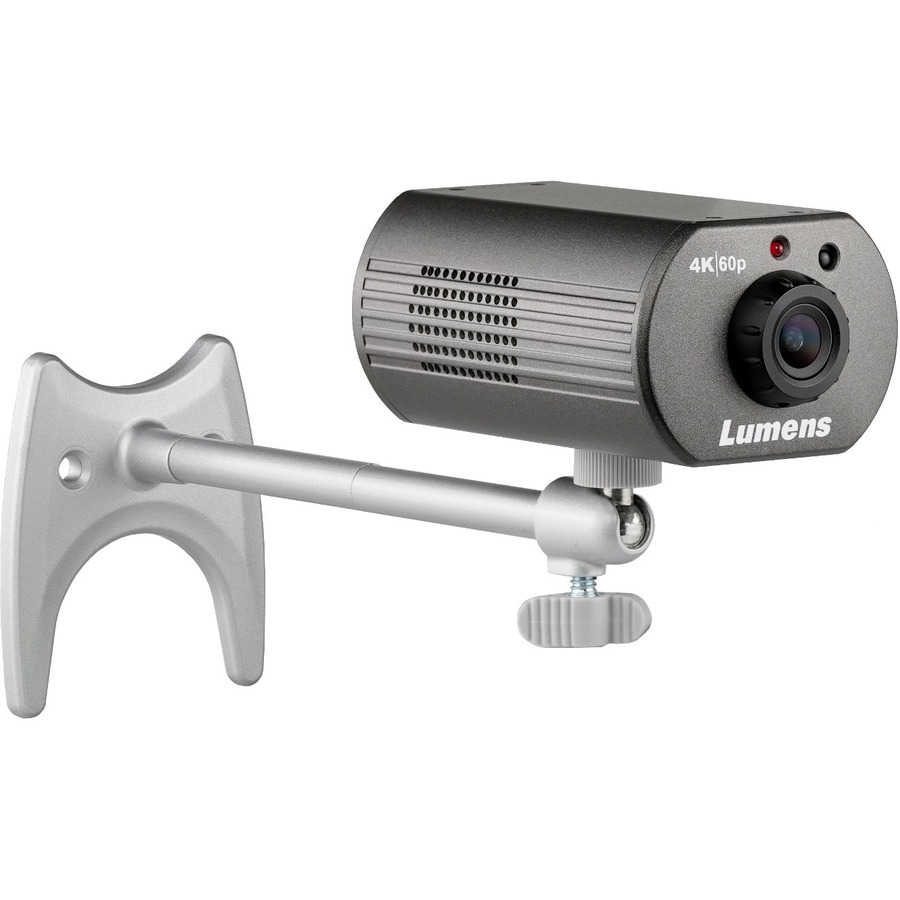

  • Bracket Accessory Kit
Warranty
Limited Warranty5 Year
