Lumens- VC-TR40NW

NDI 20x Optical Zoom USB.3 Dual lens AI Auto Tracking PTZ Camera TAA

Manufacturer: Lumens
Category: PTZ Cameras
SKU: VC-TR40NW
Availability: Call
MSRP: $2,499.00
PRODUCT HIGHLIGHTS

NDI Technology

Connecting the camera to an NDI network means video, audio, control and power down a single Ethernet cable.

Intelligent Modes

VC-TR40N supports stage tracking, everywhere tracking, and partition tracking modes so that you can optimize the sensors to track more accurately than ever and deliver superb results every time.

Gesture Control Tracking

If you have multiple presenters on stage or require audience participation, all they need to do is raise their hands. The camera then switches its focus to the new target.

Auto-Framing and Partition Framing Mode

Auto-framing modes automatically set the ideal camera position for a team meeting or group discussion. The modes frame the delegates and not the space around them.

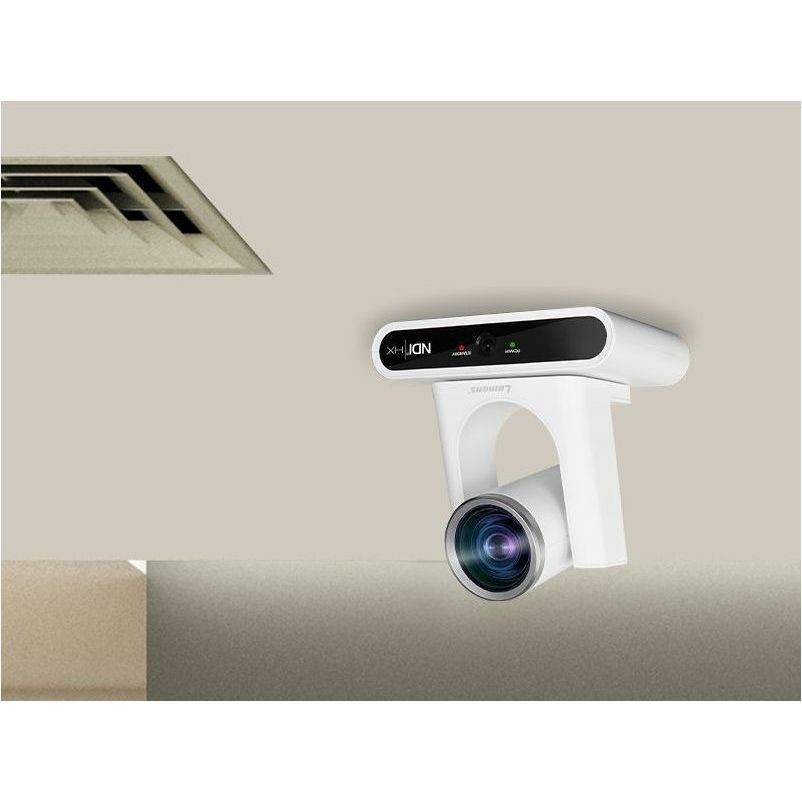

Flexible Mounting

Unlike many tracking cameras, VC-TR40N can be mounted vertically or inverted from the ceiling.


  • AI-Powered face recognition for intelligent auto-tracking and framing
  • NDI|HX output
  • HDMI, 3G-SDI, IP and USB simultaneous output
  • 1080P 60fps with 20x Optical Zoom
  • Mount upright or inverted
SPECIFICATIONS
General Information
ManufacturerLumens
Manufacturer Part NumberVCTR40NW
Manufacturer Website Addresshttp://www.lumens.com.tw
Brand NameLumens
Product ModelVC-TR40NW
Product NameVC-TR40N AI-Powered NDI Auto-Tracking Camera
Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Image Sensor Size1/2.8"
Color SupportedColor
Field of ViewHorizontal Viewing Angle 111°/Vertical Viewing Angle 62°
Effective Camera Resolution2 Megapixel
Video
Video FormatsH.264
MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Video Signal FormatPAL
NTSC
Analog Video Signal FormatNDI
3G-SDI
Lens
Lens TypeVarifocal
Minimum Focal Length4.90 mm
Maximum Focal Length94 mm
Lens IncludedYes
Minimum Aperturef/2.8
Maximum Aperturef/1.6
Optical Zoom20x
Exposure
Shortest Shutter Speed1/10000 Second
Longest Shutter Speed1/25 Second
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyEthernet
ProtocolsRTSP
RTMP
VISCA over IP
VISCA
ONVIF
PELCO-D
HTTP
Remote ManagementYes
Interfaces/Ports
USBYes
HDMIYes
Network (RJ-45)Yes
Power Description
Input Voltage12 V DC
Power Source TypeDC
PoE
Physical Characteristics
Mount TypeCeiling Mount
Product ColorWhite
Black
Miscellaneous
FeaturesPTZ
Automatic White Balance
Auto Gain Control
Wide Dynamic Range
3D Noise Reduction
Microphone In
Audio Compression
Built-in Tally Light
Auto Tracking
TAA CompliantYes
Warranty
Limited Warranty5 Year
