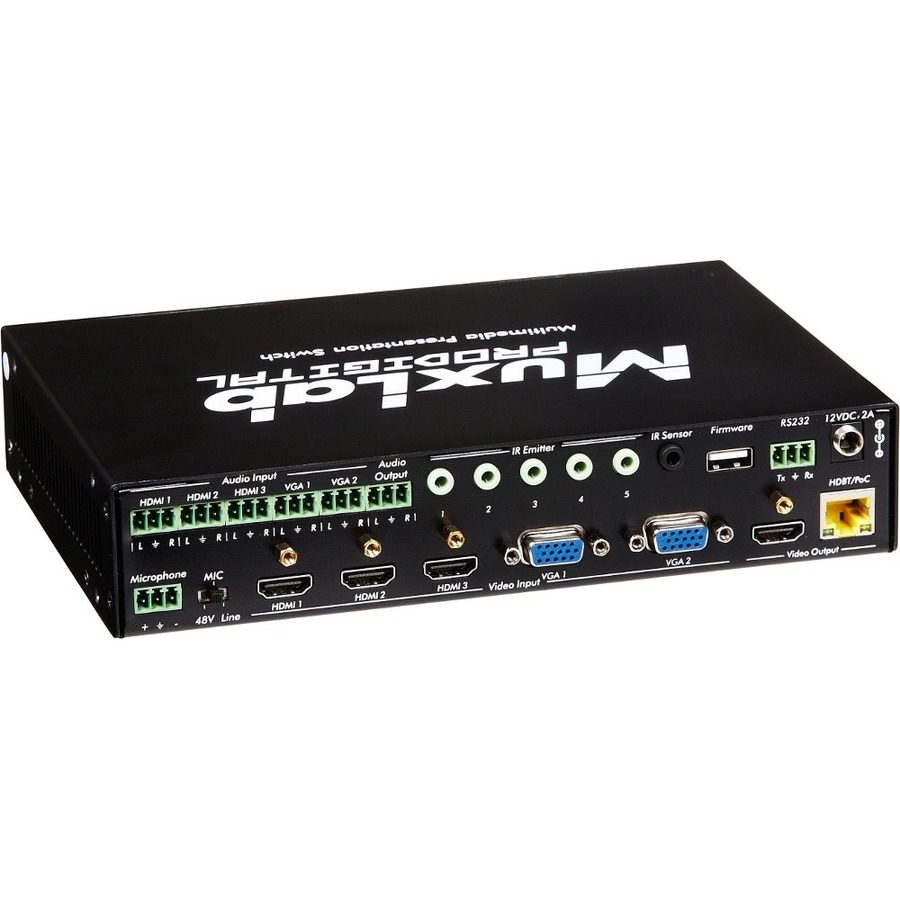

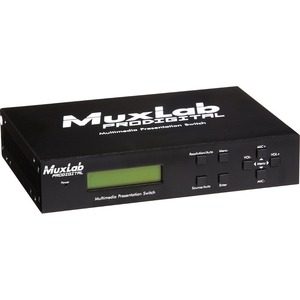

This MuxLab presentation switch is compact with 5 video inputs and 6 audio inputs. 5 video inputs of this compact scaler switcher include 3 HDMI and 2 VGA and the 6 audio inputs include 3 HDMI audio, 2 VGA, and 1 MIC audio. The switch switches and scales any kind of video signal to HDMI output for transmission over 70 m of Cat5e/6 with PoC support. The device can be put to use in monitoring, conference centres, hotels and hospitality rooms, command and control centres, smart homes and more.
- Supports video source auto-switching function
- Bi-directional IR & RS232 control
- Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
- Output resolutions selectable (1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768)
- Supports CEC, with commands to enable/disable this function
- Compliant with HDCP
- Supports online software upgrading
- MIC port supports balance/unbalance signal, suppress the external noise effectively
- 48V phantom power to support condenser microphone
- 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
