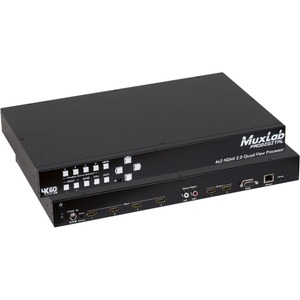

This 4x2 HDMI 2.0 Quad-view processor supports up to 4 HDMI 4K/60 sources to be presented on one-two displays as a multi-view arrangement setting. The user may choose one out of 5 default multi view options or from 8 custom layouts to customize view layout overall. The device adapts to video transitions – fade in/out, wipe, dissolve, and seamless. The device supports pass through of all audio signals using 2CH audio extraction. This quad-view processor can be locally controlled using pushbuttons or by IR management.
- Supports 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs
- Supports resolutions up to 4K/60 (4:4:4)
- HDCP 2.2 compliant
- Send multi-view video from 1 to 4 inputs shown on both output ports simultaneously
- PIP is supported as well as 5 preset multi-view layouts, and up to 8 custom layouts may be created, saved and recalled
- Supports various transitions between views
- Supports audio extraction of 2CH PCM to 2CH analog audio
- Supports pass-through of LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, Dolby Atmos, DTS-HD Master Audio™ and DTS:X
- May be managed by local push buttons, and remotely via IR, RS232, and Ethernet
- Includes IR remote
