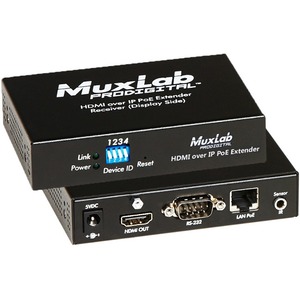

For years, the only way to connect your HDMI equipment to build an HD video wall was by running many cables. Not very practical for installing in a typical office space. This HDMI over IP PoE Extender from MUXLAB solves this issue by extending the HDMI signal over the network to all displays in the array. The user can configure the video wall size (X by Y) and, depending on network bandwidth, display 100's of screens with HD resolutions. An Ethernet switch (PoE or non-PoE) connects the transmitter unit, and the maximum cable length between the two pieces of equipment is 330ft (100m).
- Configure a Video Wall array with 100's of displays, depending on network bandwidth
- HDMI 1.3
- Supports up to 1080p resolutions
- Visually lossless video (1 frame latency)
- Supports point-to-point, point-to-multipoint and multipointto-multipoint applications
- Transmission up to 330ft (100m) over Cat5e/6
- Transmission up to 390ft (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario
- Supports RS232 and IR transmission for remote control
- PoE powered
- Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
