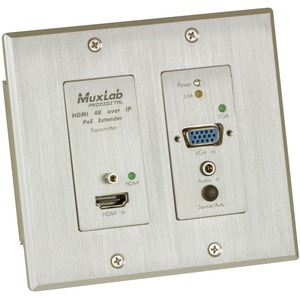

The HDMI/VGA over IP PoE Wall Plate Transmitter, UHD-4K is a two-gang wall plate transmitter which provides a convenient interface for HDMI and VGA input sources. It allows HDMI and VGA equipment to be extended up to 330ft (100m) from an Ethernet Switch via one (1) Cat5e/6 cable. The unit supports one (1) HDMI-In, one (1) VGA-In and one 2CH Audio-In, and supports resolutions up to 4K (3840×2160) @ 30Hz for HDMI and 1920×1200 @ 60Hz for VGA. The input selection between HDMI and VGA inputs may be locally or remotely selected, and supports auto and manual switching modes with LED indicators. This device may be used with the MuxLab 500758-RX and 500759-RX over IP Receivers, all managed via the 500811 Network Controller. The device supports PoE (PD) for easy installation.
Applications:
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems
- Connectivity Technology: Wired
- Number of Input Devices Supported: 1
- Maximum Operating Distance: 330 ft
- Graphics Modes: 4K UHD
- Maximum Video Resolution: 3840 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- VGA In: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Inputs: 1
- Number of VGA Inputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 6
- Power over Ethernet (PoE): Yes
- Form Factor: Wall Plate
- Transmitter Weight (Approximate): 1.17 lb
- Application/Usage: Digital Signage System
- Application/Usage: Projector
- Application/Usage: A/V Equipment
