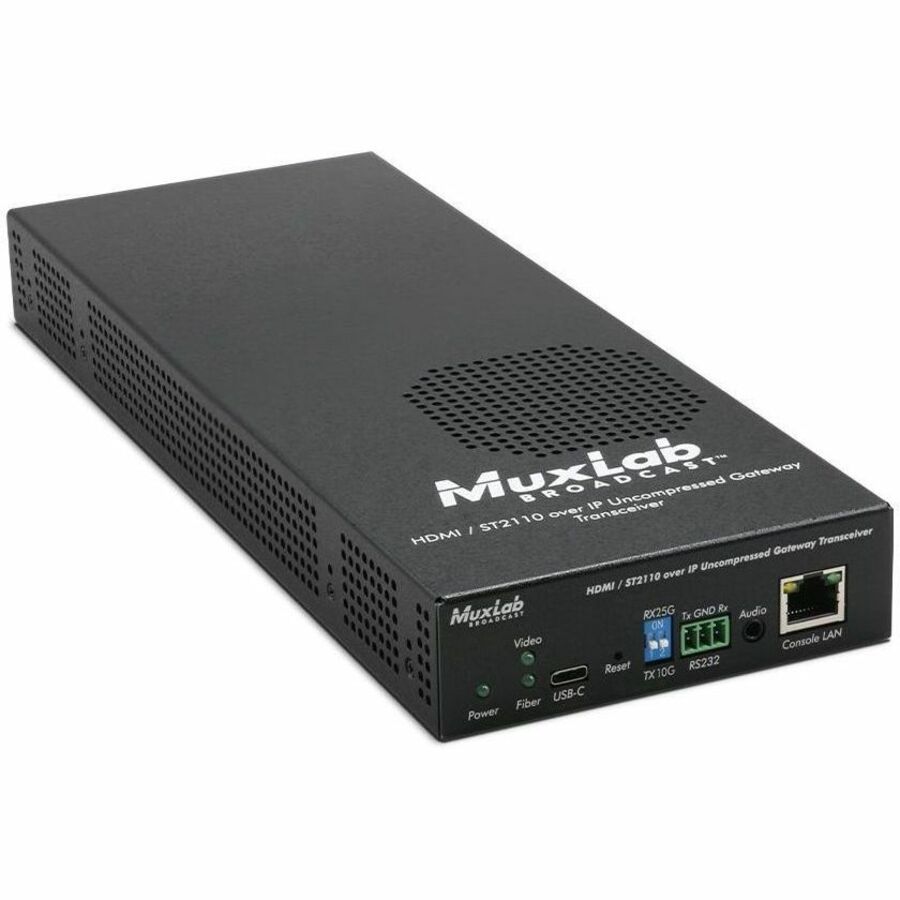

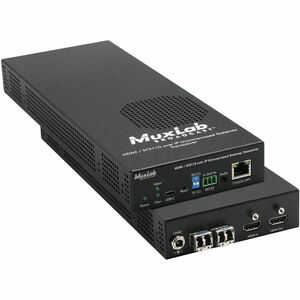

The transceiver unit allows HDMI2.0 equipment to be extended up-to many miles over an IP network. This Gateway Converter supports the ST-2110 AV over IP protocol standard for Broadcast applications. It supports audiovisual data up to uncompressed 4K@60Hz resolution video and 16 audio channels (12Gbps bandwidth).

This unit is a transceiver and can be configured as a Transmitter or Receiver for added flexibility and convenience.

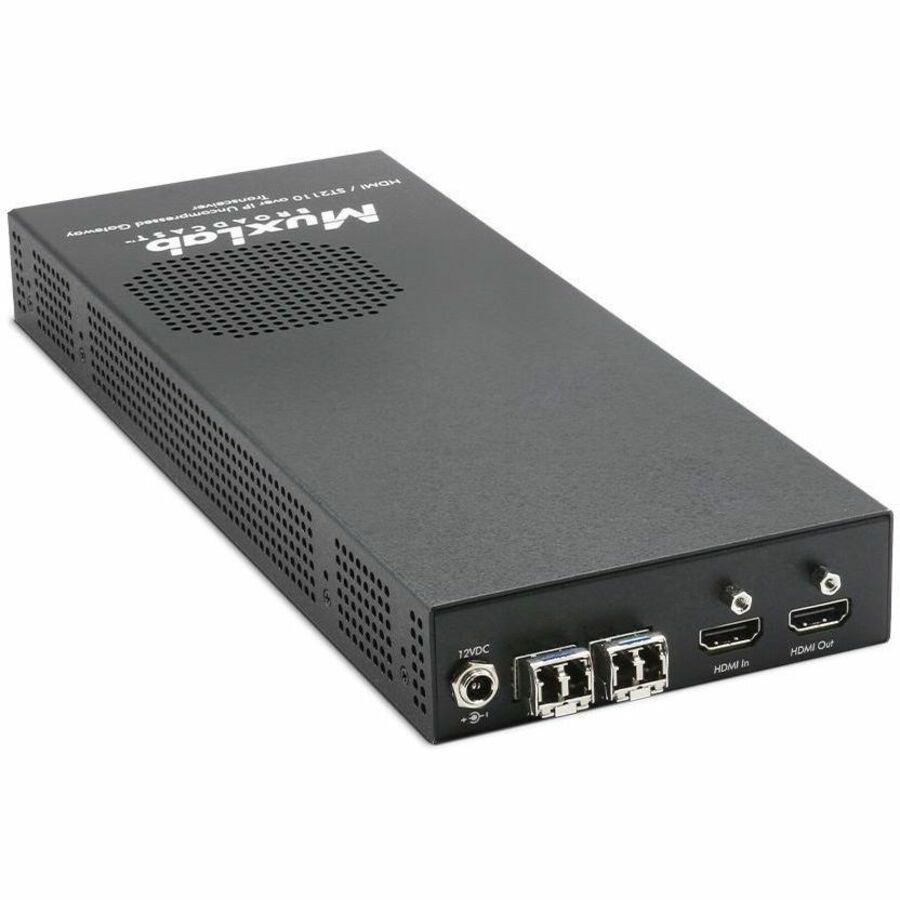

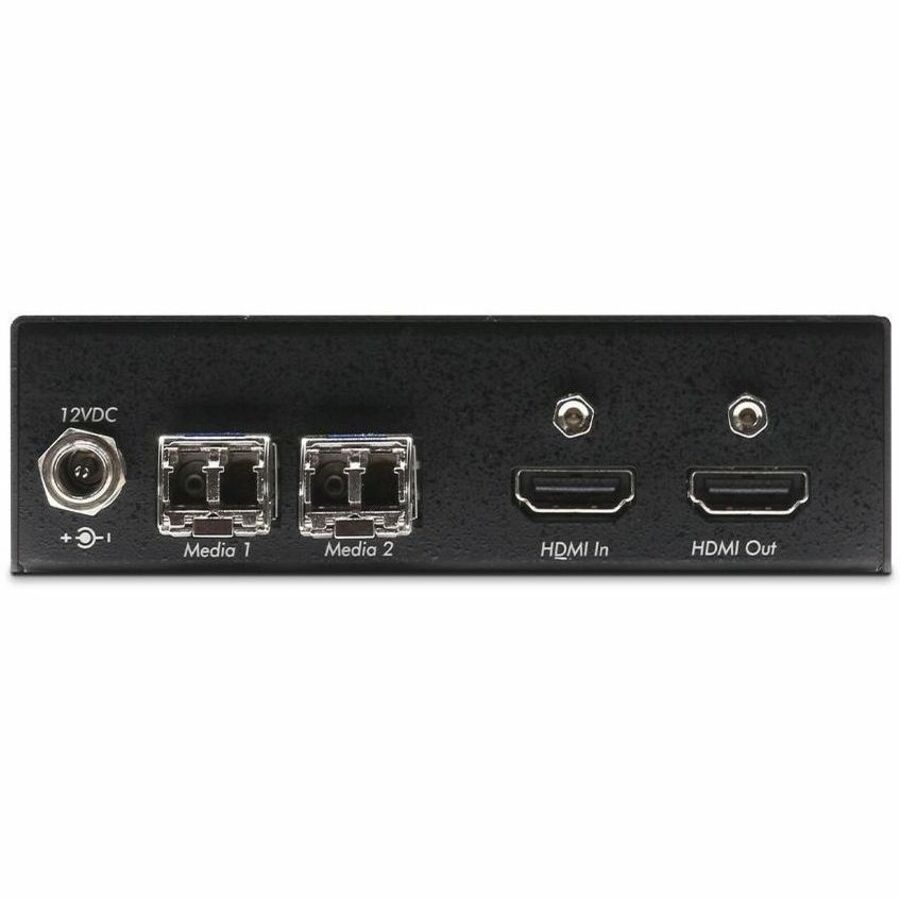

The unit converts AV data from HDMI2.0 to be utilized in a broadcast environment over a network, while extending end point source and sink devices at up to 6.2mi (10km) via duplex single mode fiber, and up to 320ft(100m) for the multimode model. Point-to-point configuration is supported as well as point-to-multipoint and multipoint-to-multipoint configurations by connecting several units to a 25G Ethernet network. This device is versatile and can also be used over 10G network. In this case, maximum video resolution is uncompressed 4K@30Hz (6Gbps bandwidth).

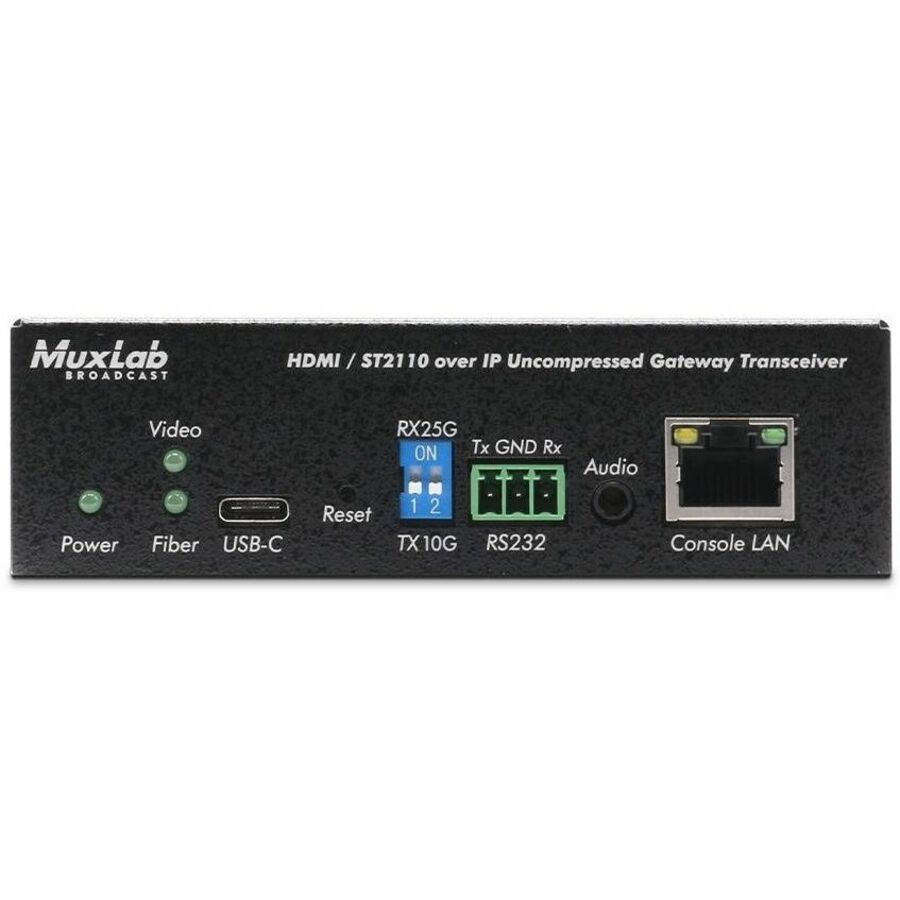

The device supports ST-2022-7 (Class D) Redundancy for critical fail-safe applications allowing the audio/video signal to run over two independent 25G/10G Ethernet Networks. The unit provides a 1G Ethernet Network port for control via Web interface or 3rd party management platforms supporting a RestAPI, or NMOS (IS-04 for discovery and IS-05 for connectivity management).
