Planar- 998-2595-00

VM55MX-M2 55" 1920x1080 LCD Video Wall Display, 500 Nit

Manufacturer: Planar
Category: Video Walls
SKU: 998-2595-00
Availability: Call
MSRP: $4,644.00
PRODUCT HIGHLIGHTS

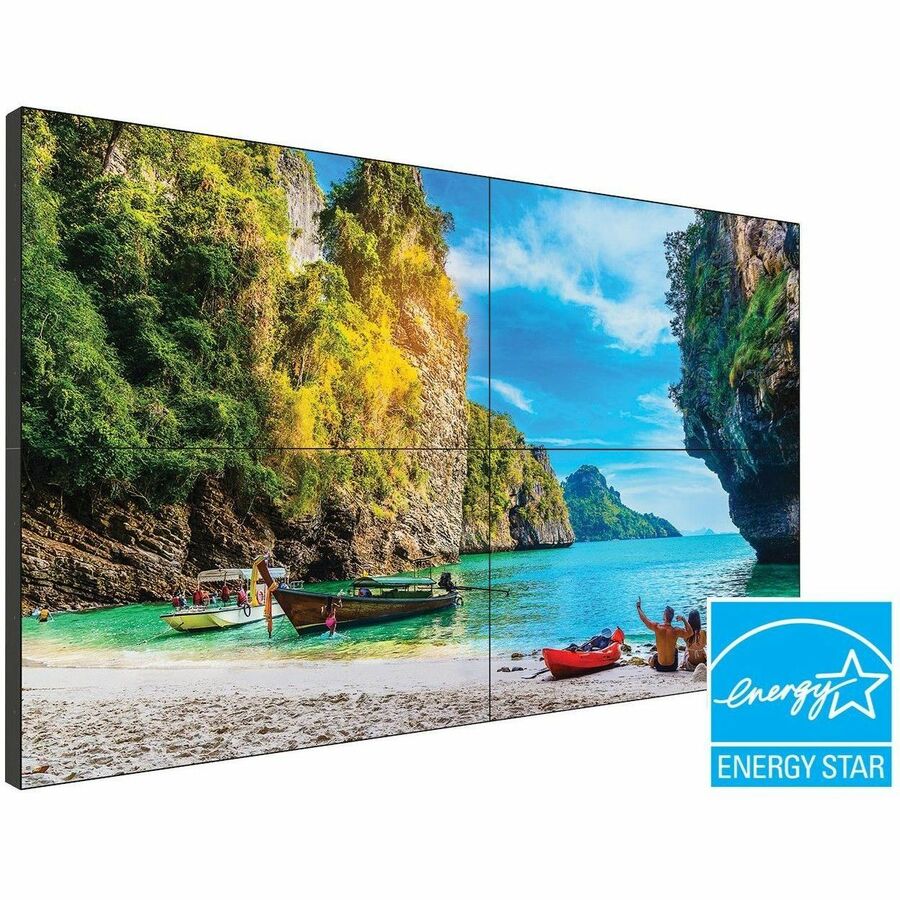

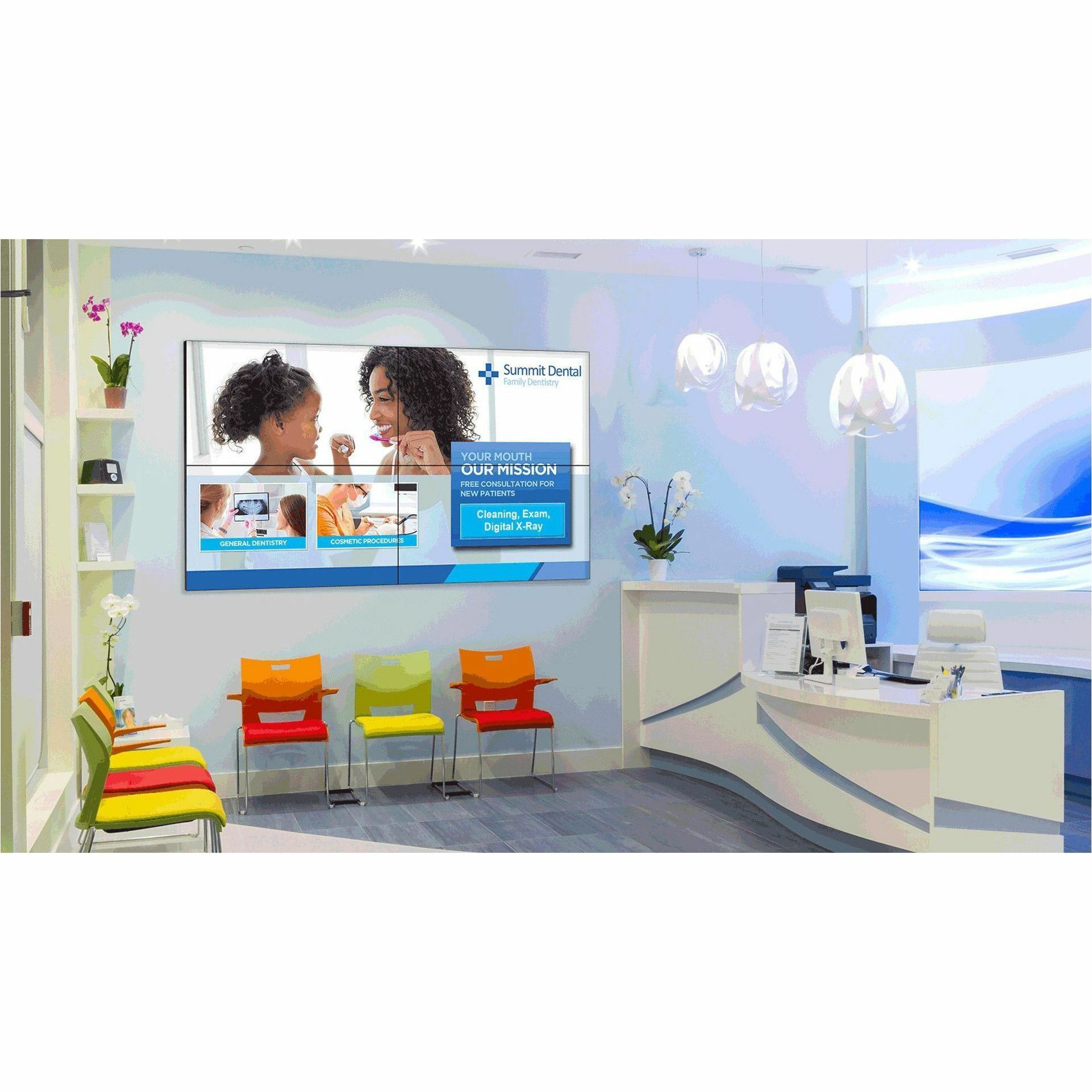

The Planar VM55MX-M2 is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700- nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55MXM2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55MX-M2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55MX-M2 is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums. The Planar VM55MX-M2 is an ENERGY STAR certified video wall display.

  • Video Wall Compatible: Yes
  • Bezel Width: 17.3 mil
  • Panel Technology: In-plane Switching (IPS) Technology
  • Operation Hours: 24 Hours/7 Days
  • Number of Screens: 1
  • Video Wall Configuration: 10x10
  • Screen Size: 55"
  • Display Screen Type: LCD
  • Display Resolution: 1920 x 1080
  • Backlight Technology: Direct LED
  • Scan Format: 1080p
  • Dynamic Contrast Ratio: 140,000:1
  • Brightness: 700 Nit
  • Color Gamut: 72% NTSC
  • Ethernet: Yes
  • USB: Yes
  • HDMI: Yes
  • DisplayPort: Yes
  • Serial: Yes
SPECIFICATIONS
General Information
ManufacturerLeyard
Manufacturer Part Number998259500
Manufacturer Website Addresshttp://www.planar.com
Brand NamePlanar
Product ModelVM55MX-M2
Product NameVM55MX-M2 LCD Video Wall
Product TypeDigital Signage Display
Technical Information
Video Wall CompatibleYes
Bezel Width17.3 mil
Panel TechnologyIn-plane Switching (IPS) Technology
Operation Hours24 Hours/7 Days
Display & Graphics
Number of Screens1
Video Wall Configuration10x10
Screen Size55"
Display Screen TypeLCD
Display Resolution1920 x 1080
Pixel Pitch24.8 mil
Backlight TechnologyDirect LED
Video
Scan Format1080p
Dynamic Contrast Ratio140,000:1
Color Depth10-bit
Brightness700 Nit
Color Gamut72% NTSC
Network & Communication
EthernetYes
Interfaces/Ports
USBYes
HDMIYes
DisplayPortYes
SerialYes
Number of USB 2.0 Ports2
Number of USB 3.0 Ports1
Number of HDMI Inputs2
Number of DisplayPorts2
Power Description
Input Voltage120 V AC
230 V AC
Physical Characteristics
VESA Mount Standard400 x 400
Miscellaneous
Package Contents
  • VM55MX-M2 Display
  • 1.8m AC Power Cord (US)
  • 1.8m DisplayPort Cable
  • Remote Control
  • IR Receiver
  • IR loop Cable
  • RS-232 Cable
  • RS-232 Loop Cable
  • Alignment Brackets
  • Cable Clips
  • Quick Start Guide
Application/UsageRetail
Hospitality
Lobby
Museum
Commercial
Energy StarYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Warranty
Limited Warranty3 Year
