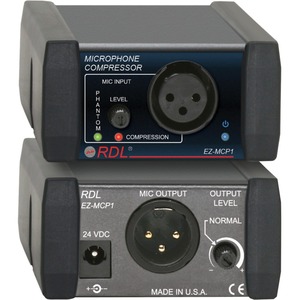

RDL- EZ-MCP1

Microphone Compressor

Manufacturer: RDL
Category: Amplifiers
SKU: EZ-MCP1
Availability: Call
MSRP: $300.18
PRODUCT HIGHLIGHTS
The EZ-MCP1 is an in-line microphone compressor that produces consistent audio levels despite wide variations (up to 30 dB) from the microphone. It is installed between a dynamic or condenser microphone and a mic-level mixer or amplifier input. The only setup required is a front-panel level trimmer that is adjusted during normal speech until the compression LED just begins to flash. A rear-panel output level trimmer is provided although it is typically left in the normal default position. Phantom voltage (24 V) is automatically switched on when the EZ-MCP1 output is connected to a mic jack that provides phantom voltage. The EZ-MCP1 improves sound quality and intelligibility by producing consistent audio levels and controlling overloads that produce distortion and clipping. It is used for recording, paging and public address in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.
  • Produces Consistent Levels from Any Microphone
  • Installs Between Microphone and Mixer/Amplifier
  • Improves Intelligibility with Fast Automatic Level Control
  • Controls Overloads that Cause Distortion and Clipping
  • Front-Panel Set-Up Trimmer with LED Indicator
  • Automatic Phantom Voltage Switching with LED
  • XLR Input and Output
SPECIFICATIONS
General Information
ManufacturerRadio Design Labs, Inc
Manufacturer Part NumberEZ-MCP1
Manufacturer Website Addresshttp://www.rdlnet.com
Brand NameRDL
Product ModelEZ-MCP1
Product NameEZ-MCP1 Microphone Compressor
Product TypeMicrophone Compressor
Miscellaneous
Certifications & StandardsCE
Country of OriginUnited States
Environmentally FriendlyYes
RDL EZ-MCP1 Microphone Compressor
