RDL- RU-TP4PW

Power Inserter-Twisted Pair-four sets of outputs-signal loop-through

Manufacturer: RDL
Category: Accessories
SKU: RU-TP4PW
Availability: Call
MSRP: $213.43
PRODUCT HIGHLIGHTS

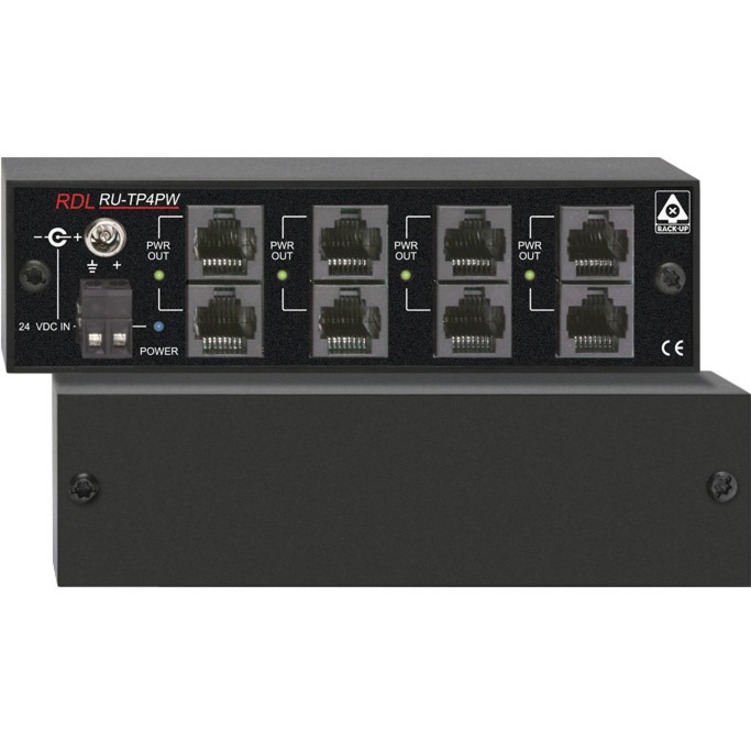

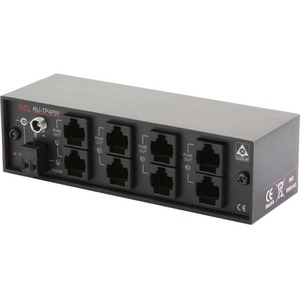

The RU-TP4PW is a four output power inserter compatible with RDL twisted pair products. The RU-TP4PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED. The RU-TP4PW is ideal for powering remote twisted pair modules from a central equipment rack.

  • Power Four Sets of Remote Senders and Receivers from a Convenient Location
  • 24 Vdc Input on dc Power Jack or Detachable Terminal Block
  • Blue Power LED Shows Module is Receiving Power
  • Green LEDs Indicate Correct dc Output Voltage on RJ45s
  • Two Associated RJ45s Provided for Each Power Output
  • One Associated RJ45 may Power Receivers
  • The Other Associated RJ45 may Power Senders
  • High-Density Rack Mounting Using RACK-UP Accessories
SPECIFICATIONS
General Information
ManufacturerRadio Design Labs, Inc
Manufacturer Part NumberRU-TP4PW
Manufacturer Website Addresshttp://www.rdlnet.com
Brand NameRDL
Product ModelRU-TP4PW
Product NameRU-TP4PW PoE Injector
Product TypePoE Injector
Power Description
Input Voltage24 V DC
Maximum Input Current25 mA
Interfaces/Ports
Input Ports1 x Terminal Block
Output Ports8 x RJ-45
Physical Characteristics
Form FactorDIN Rail/Cabinet/Surface/Rack Mountable
Miscellaneous
Country of OriginUnited States

Overview

RDL RU-TP4PW PoE Injector
24 V DC Input - 1 x Terminal Block Input Port(s) - 8 x RJ-45 Output Port(s)
