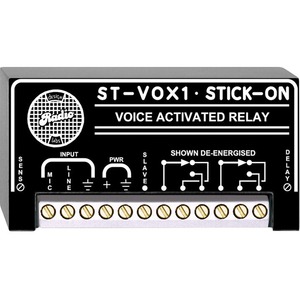

RDL- ST-VOX1

Voice Operated Relay

Manufacturer: RDL
Category: Accessories
SKU: ST-VOX1
Availability: Call
MSRP: $197.22
PRODUCT HIGHLIGHTS

The ST-VOX1 is an Audio Controlled Relay in the STICK-ON® series. When used in intercom or talkback applications, the ST-VOX1 may be triggered directly from an unbalanced microphone. In many such installations the microphone or other audio source must be preamplified, making the ST-VOX1 an ideal mate to work with the STM-1 preamp. The unbalanced output from the STM-1 can be used to trigger the ST-VOX1, while the STM-1 balanced output is used for the audio feed.

  • Switching Controlled by Voice Signal
  • Switching from Mic or Line Level Signals
  • Precise Threshold Adjustment
  • DPDT Switching Contacts
  • Open-Collector SLAVE Output
SPECIFICATIONS
General Information
ManufacturerRadio Design Labs, Inc
Manufacturer Part NumberST-VOX1
Manufacturer Website Addresshttp://www.rdlnet.com
Brand NameRDL
Product NameVoice Operated Relay
Product TypeRelay
Product Information
Contact TypeDouble Pole Double Throw (DPDT)
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Miscellaneous
Additional Information
  • Mic Input: 5 kΩ unbalanced line
  • Line Input: 200 kΩ unbalanced
  • Control Outputs: Open-Collector @ 25 mA, suitable to drive indicators or Slave LCR
  • Relay Contacts: Double-pole-double-throw
  • Max. Switching Power: 60 W, (220 Vdc, 125 Vac, 2A)
  • Mic Input Sensitivity: Adjustable -80 dBu to -50 dBu
  • Line Input Sensitivity: Adjustable -45 dBu to -15 dBu
  • Indicators: Audio threshold LED (for setting sensitivity)
  • Retrigger Delay: 50 ms Release Delay Time Adjustment Range: Relay Contacts: 70 to 260 ms Slave open-collector output: 15 to 260 ms Activation Response Time
  • Relay Contacts: 5 ms
  • Slave open-collector output: 3 ms
  • Ambient Operating Environment: 0° C to 55° C

Overview

RDL Voice Operated Relay
Double Pole Double Throw (DPDT)
