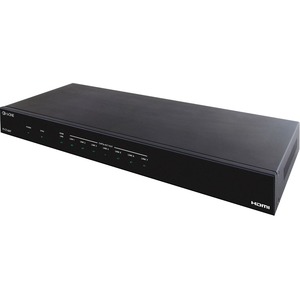

tvONE- 1T-CT-647

HDMI UHD 4K HDBaseT Lite 7-Port Transmitter

Manufacturer: tvONE
Category: Twisted Pair Extension
SKU: 1T-CT-647
Availability: Call
MSRP: $2,100.00
PRODUCT HIGHLIGHTS

1T-CT-647 over Single Cat.5e/Cat.6 system consists of a seven port transmitter for use with 1T-CT-642 Receivers (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-647 can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.

  • Connectivity Technology: Wired
  • Number of Input Devices Supported: 1
  • Number of Output Devices Supported: 7
  • Maximum Operating Distance: 197 ft
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • HDMI Out: Yes
  • USB: Yes
  • Number of Network (RJ-45) Ports: 7
  • Number of USB Ports: 1
  • Number of HDMI Inputs: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 6
  • Transmitter Height: 1.75"
  • Transmitter Width: 19"
  • Transmitter Depth: 7"
SPECIFICATIONS
General Information
ManufacturerTV One
Manufacturer Part Number1T-CT-647
Manufacturer Website Addresshttp://www.tvone.com
Brand NameTV One
Product Model1T-CT-647 HDMI
Product NameHDMI UHD 4K HDBaseT-Lite 7-Port Transmitter
Product TypeVideo Extender Transmitter
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported7
Maximum Operating Distance197 ft
Video
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
USBYes
Number of Network (RJ-45) Ports7
Number of USB Ports1
Number of HDMI Inputs1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Physical Characteristics
Form FactorRack-mountable
