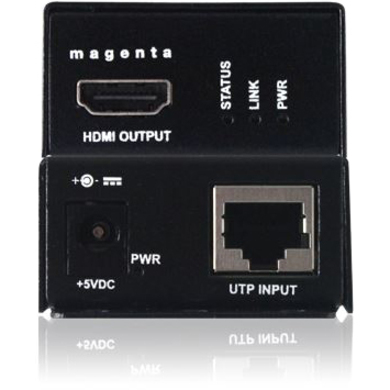

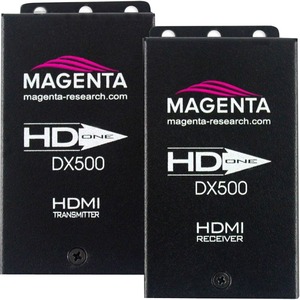

Magenta’s HD-One DX500 is a top of the line 1080p extender that greatly reduces the issues that most extenders face. The HD-One DX can send 1920x1200 resolution HDCP-protected video, embedded audio, and IR to a distance of 500 feet (152 meters), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference.
In addition to video, the HD-One DX500 also functions with HDMI embedded audio. Dolby®, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period!
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 492.13 ft
- Graphics Modes: WUXGA
- Maximum Video Resolution: 1920 x 1200
- Network (RJ-45): Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Receiver Height: 1"
- Receiver Width: 1.90"
- Receiver Depth: 3.20"
- Receiver Weight (Approximate): 4.80 oz
- Country of Origin: United States
- Limited Warranty: 3 Year
