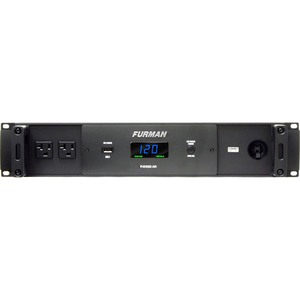

Furman- P-2400 AR

Voltage Regulator/Power Conditioner (20A)

Manufacturer: Furman
Category: Power Conditioner
SKU: P-2400 AR
Availability: Call
MSRP: $3,329.95
PRODUCT HIGHLIGHTS

The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or over voltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With it's robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.

Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

  • Protection Type: Surge
  • Protection Type: Spike
  • Protection Type: Sag
  • Protection Type: Brownout
  • Protection Type: Over Voltage
  • Protection Type: AC Noise
  • Protection Type: Transient
  • Protection Type: Inrush Current
  • Receptacle Type: NEMA 5-20R
  • Receptacle Type: USB
  • Receptacles Detail: 14 x NEMA 5-20R
  • Receptacles Detail: 1 x USB
  • Load Capacity (Watt): 2400 W
  • Input Voltage: 110 V AC
  • Cord Length: 10 ft
  • Height: 3.5"
  • Width: 19"
  • Depth: 12"
  • Weight (Approximate): 39.68 lb
SPECIFICATIONS
General Information
ManufacturerFurman Sound, Inc
Manufacturer Part NumberP-2400 AR
Manufacturer Website Addresshttp://www.furmansound.com
Brand NameFurman Sound
Product ModelP-2400AR
Product NameP-2400AR Line Conditioner
Product TypeLine Conditioner
Technical Information
Protection TypeSurge
Spike
Sag
Brownout
Over Voltage
AC Noise
Transient
Inrush Current
Receptacles14 x NEMA 5-20R
1 x USB
Power Description
Load Capacity (Watt)2400 W
Input Voltage110 V AC
Input Voltage Range90 V AC to 139 V AC
Output Voltage120 V AC
Maximum Line Current6.5 kA
Maximum Frequency60 Hz
Physical Characteristics
Cord Length10 ft
Miscellaneous
Additional Information
  • Spike Protection Mode: Line to neutral, zero ground leakage
  • Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps
  • Response Time: 1 nanosecond
  • Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
  • Power Consumption: 13 watts
Compatibility
  • Power Amplifier
  • Powering A/V Rack

USB Devices:

  • Media Devices
  • USB Lamp
Warranty
Limited Warranty5 Year
